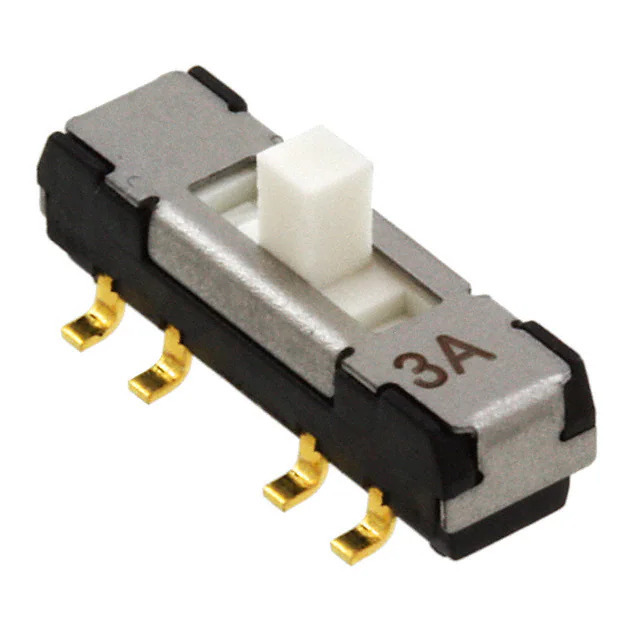

CL-SB-23B-02T Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CL-SB-23B-02T

Part No CL-SB-23B-02T
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DP3T 200MA 12V
Datasheet
CL-SB-23B-02T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CL-SB
Package Tape & Reel
Product Status Active
Circuit DP3T
Contact Timing Non-Shorting (BBM)
Switch Function On-On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper
Contact Finish Gold
Mounting Type Surface Mount
Termination Style Gull Wing
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 160/260gf
Base Product Number CL-SB-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376295-CL-SB-23B-02T
Ultra Librarian 3D Model Ultra Librarian CL-SB-23B-02T CAD Model

Description

The CL-SB-23B-02T is a surface mount slide switch from Nidec Components Corporation.

  • Series: CL-SB
  • Current Rating (DC): 200mA
  • Circuit: DP3T
  • Voltage Rating: 12V
  • Actuator Type: Standard
  • Contact Finish: Gold
  • Actuator Material: Polyamide (PA) and Nylon
  • Switch Travel: 2.00mm
  • Termination Style: Gull Wing
  • Mechanical Life: 10,000 Cycles
  • Temperature Range: -40°C to 85°C
  • Packaging: Tape and Reel
  • Operating Force: 160/260gf
  • Actuator Length: 2.00mm
  • Illumination: Non-Illuminated
  • Contact Timing: Non-Shorting (BBM)
