Same model may have multiple batches, images only for reference.

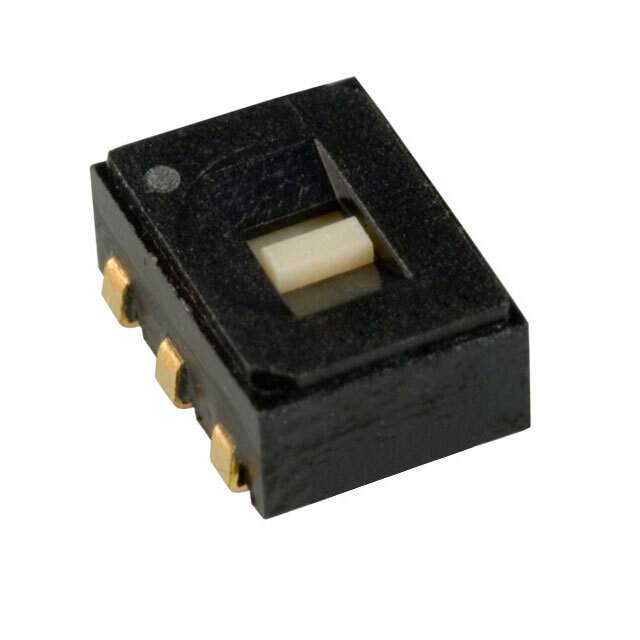

CAS-220TA1 Real Image
Same model may have multiple batches, images only for reference.

CAS-220TA1

Part No CAS-220TA1
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DPDT 100MA 6V / Slide Switch DPDT Surface Mount
Datasheet
CAS-220TA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr Nidec Copal Electronics
Series CAS
Package Tape & Reel (TR)
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 6 V
Actuator Type Flush
Actuator Length Flush
Contact Material Copper Alloy
Contact Finish Gold
Mounting SMD (SMT)
Termination Style J Lead
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.60mm
Electrical Life 2,000 Cycles
Operating Force 51 ~ 510gf
Base Product Number CAS-220
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1232955-CAS-220TA1
Ultra Librarian 3D Model Ultra Librarian CAS-220TA1 CAD Model

Description

The CAS-220TA1 is a DPDT slide switch designed for use in electronic applications.

  • Voltage Rating: 6V DC
  • Current Rating: 100mA DC
  • Actuator Type: flush
  • Switch Travel: 0.60mm
  • Contact Finish: gold
  • Packaging: tape and reel
  • Temperature Range: -40°C to 85°C
  • Packaging: bulk
  • Standard Package: 1,000
