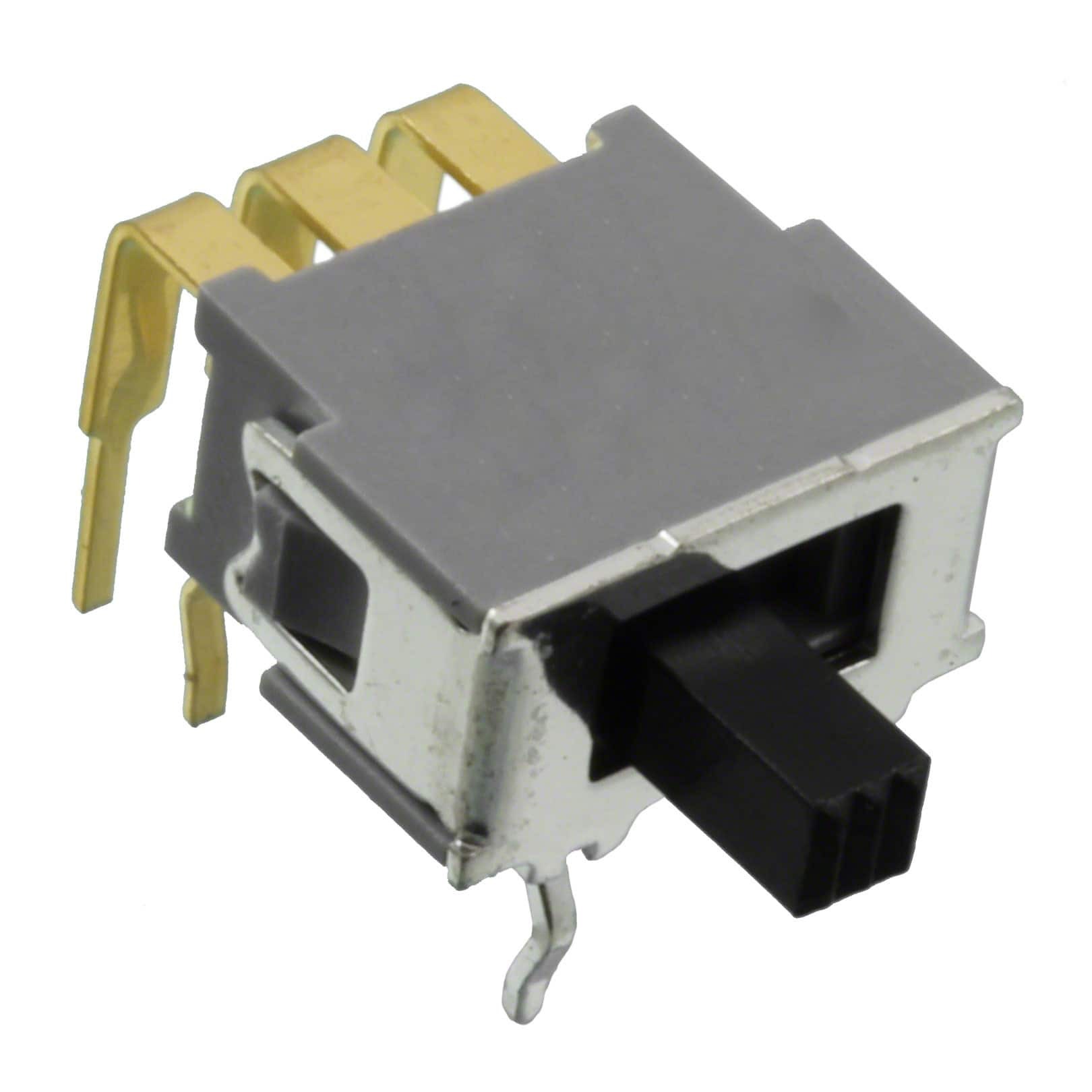

Same model may have multiple batches, images only for reference.
AS2D-6M-10-Z
Same model may have multiple batches, images only for reference.

AS2D-6M-10-Z

Part No AS2D-6M-10-Z
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DPDT 50MA 48V
Datasheet
AS2D-6M-10-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Copal Electronics
Series AS
Package Tray
Product Status Active
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 50mA (AC/DC)
Voltage Rating - AC 48 V
Voltage Rating - DC 48 V
Actuator Type Standard
Actuator Length 4.30mm
Contact Finish Gold
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 85°C
Switch Travel 2.20mm
Electrical Life 10,000 Cycles
Operating Force 70 ~ 500gf
Base Product Number AS2D-6M
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 861885-AS2D-6M-10-Z
Ultra Librarian 3D Model Ultra Librarian AS2D-6M-10-Z CAD Model

Description

The AS2D-6M-10-Z is a DPDT slide switch from the AS series.

  • Switch Type: DPDT Slide Switch
  • Series: AS
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Voltage Rating: 48 V AC/DC
  • Current Rating: 50mA
  • Actuator Length: 4.30mm
  • Switch Travel: 2.20mm
  • Contact Timing: Non-Shorting
  • Switch Function: On-On
  • Mounting Type: Through-Hole, Right-Angle
  • Package: Tray
  • Operating Temperature: -20°C to 85°C
  • Manufacturer: Nidec Copal Electronics
