Same model may have multiple batches, images only for reference.

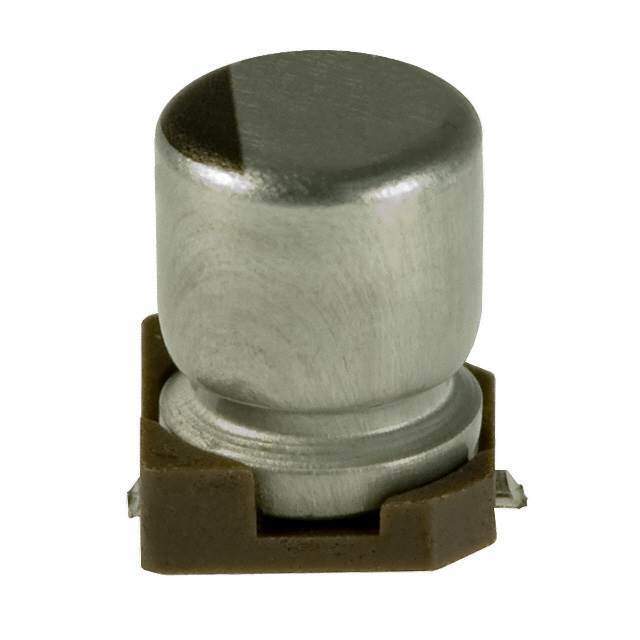

UWX1V4R7MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1V4R7MCL1GB

Part No UWX1V4R7MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 4.7UF 20% 35V SMD / 4.7 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Not For New Designs
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 18 mA @ 120 Hz
Ripple Current @ High Frequency 27 mA @ 10 kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2116-1,493-2116-6,493-2116-2
Standard Package 2,000
Win Source Part Number 1003068-UWX1V4R7MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1V4R7MCL1GB CAD Model

Description

The Nichicon UWX1V4R7MCL1GB is an aluminum electrolytic capacitor that falls under the Capacitors category.

  • Category: Capacitors
  • Capacitance: 4.7 μF
  • Voltage Rating: 35V
  • Polarity: Polar
  • Tolerance: ±20%
  • Package/Case: Radial, can - SMD
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height When Seated: 0.213" (5.40mm)
  • Dimension: 0.157" Dia (4.00mm)
  • Ripple Current: 18 mA @ 120 Hz and 27 mA @ 10 kHz
  • Win Source Part Number: 1003068-UWX1V4R7MCL1GB
  • Status: Not for New Designs
