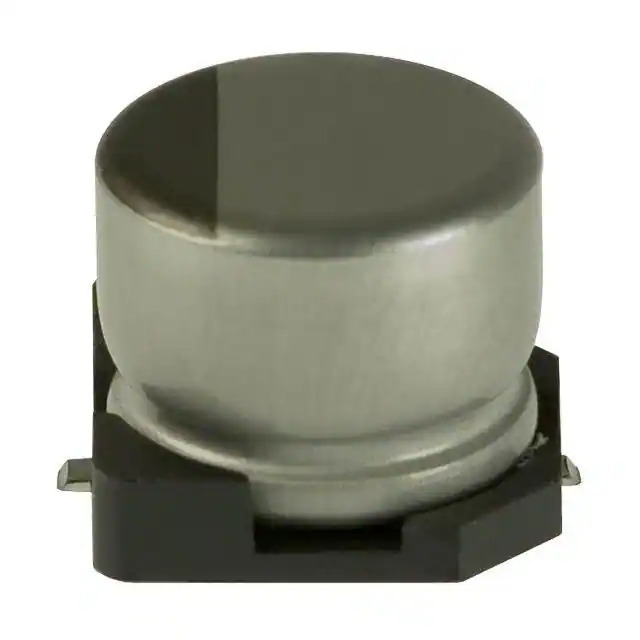

UWX1V220MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWX1V220MCL1GB

Part No UWX1V220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 35V SMD / 22 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Last Time Buy
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 46 mA @ 120 Hz
Ripple Current @ High Frequency 69 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360241-UWX1V220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1V220MCL1GB CAD Model

Description

The Nichicon UWX1V220MCL1GB is an aluminum electrolytic capacitor from Nichicon's UWX series.

  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Rated Voltage: 35V
  • Application: General Purpose
  • Ripple Current (120 Hz): 46 mA
  • Ripple Current (10 kHz): 69 mA
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mountable
  • Diameter: 0.248"
  • Height: 0.213"
  • Lifetime: 2000 hours @ 85°C
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Manufacturer: Nichicon
