Same model may have multiple batches, images only for reference.

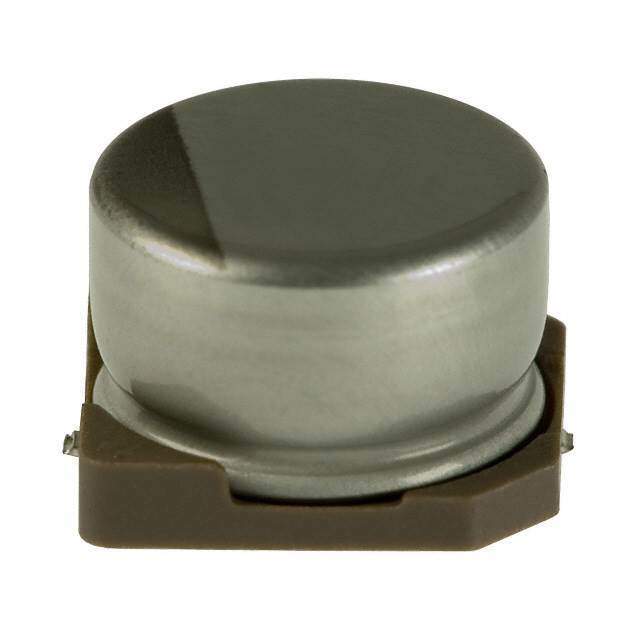

UWX1H220MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1H220MCL1GB

Part No UWX1H220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V SMD
Datasheet
UWX1H220MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 50V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 52mA @ 120Hz
Ripple Current - High Frequency 78mA @ 10kHz
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 124822-UWX1H220MCL1GB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UWX1H220MCL1GB CAD Model

Description

Nichicon's SMD capacitor, part number 124822-UWX1H220MCL1GB, is a high-quality component with a capacitance of 22μF and a voltage rating of 50V.

  • Capacitance: 22μF
  • Voltage Rating: 50V
  • Application: General Purpose
  • Mounting Technology: Surface Mount
  • Tolerance: ±20%
  • Lifetime: 2000 Hrs @ 85°C
  • Temperature Range: -40°C to 85°C
  • Package: Reel - TR
