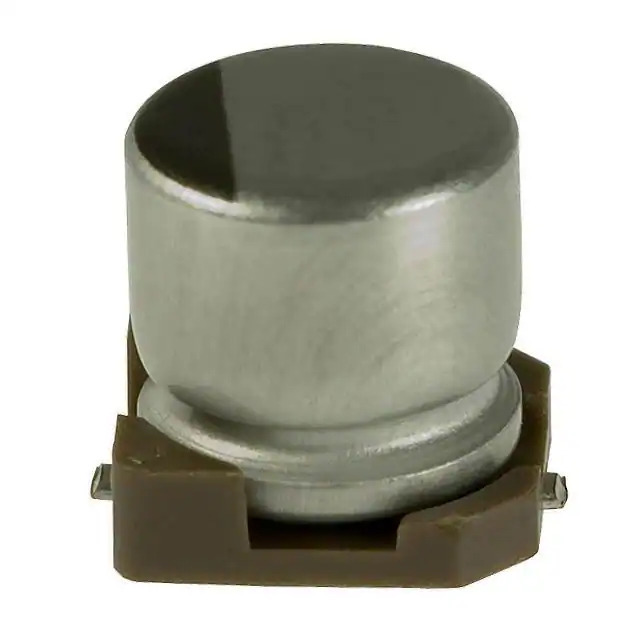

UWX1E100MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWX1E100MCL1GB

Part No UWX1E100MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 25V SMD / 10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Last Time Buy
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 27 mA @ 120 Hz
Ripple Current @ High Frequency 40.5 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360326-UWX1E100MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1E100MCL1GB CAD Model

Description

The UWX series from Nichicon is a surface mount aluminum electrolytic capacitor.

  • Capacitance: 10 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Application: General-purpose
  • Package: Radial, can - SMD
  • Size: 5.00mm Dia x 5.40mm H
  • Mounting Type: Surface mount
  • Ripple Current (Low Frequency): 27 mA @ 120 Hz
  • Ripple Current (High Frequency): 40.5 mA @ 10 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polarized
