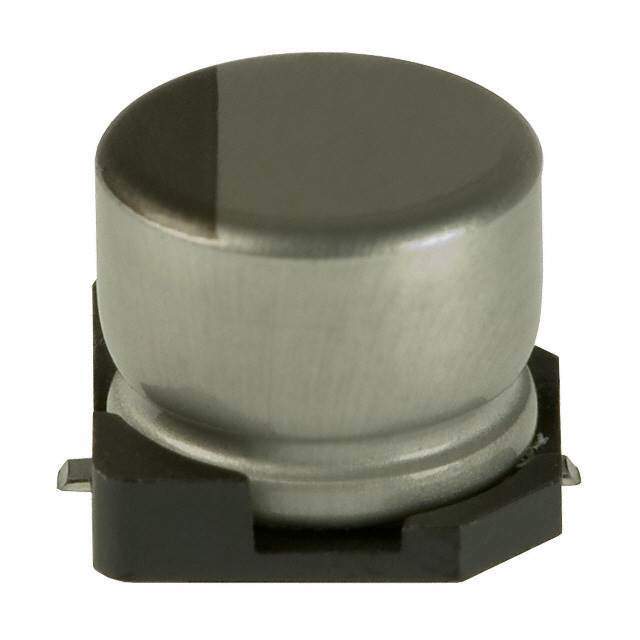

Same model may have multiple batches, images only for reference.

UWT0J101MCL1GB

Name: UWT0J101MCL1GB
Brand: Nichicon
SKU: 1184007
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT0J101MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 6.3V SMD / 100 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	60 mA @ 120 Hz
Ripple Current @ High Frequency	90 mA @ 10 kHz
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-2153-2,493-2153-1,493-2153-6
Standard Package	1,000
Win Source Part Number	1184007-UWT0J101MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWT0J101MCL1GB CAD Model

Description

The Nichicon UWT series aluminum electrolytic capacitor is a general-purpose capacitor that comes in a radial, can-style SMD package.

Capacitance: 100 µF
Voltage Rating: 6.3 V
Tolerance: ±20%
Lifetime: 1000 hours @ 105°C
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Height: 0.213" (5.40mm) when seated
Ripple Current: 60 mA @ 120 Hz and 90 mA @ 10 kHz
