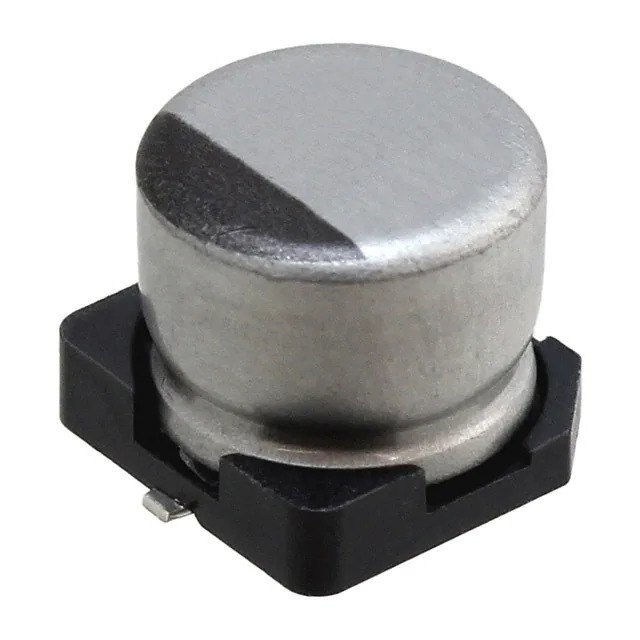

UWR1H220MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWR1H220MCL1GB

Part No UWR1H220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V SMD / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWR
Package Tape & Reel
Product Status Last Time Buy
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 52 mA @ 120 Hz
Ripple Current @ High Frequency 78 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360158-UWR1H220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWR1H220MCL1GB CAD Model

Description

The UWR1H220MCL1GB is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: UWR
  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Applications: general-purpose
  • Temperature Range: -40°C to 85°C
  • Ripple Current (Low Frequency): 52 mA @ 120 Hz
  • Ripple Current (High Frequency): 78 mA @ 10 kHz
  • Package: radial, can - SMD
  • Mounting Type: surface mounted
  • Size/Dimension: 0.248" Dia (6.30mm)
  • Height: 0.217" (5.50mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • REACH: not affected
  • ECCN: EAR99
  • Polarization: Polarized
