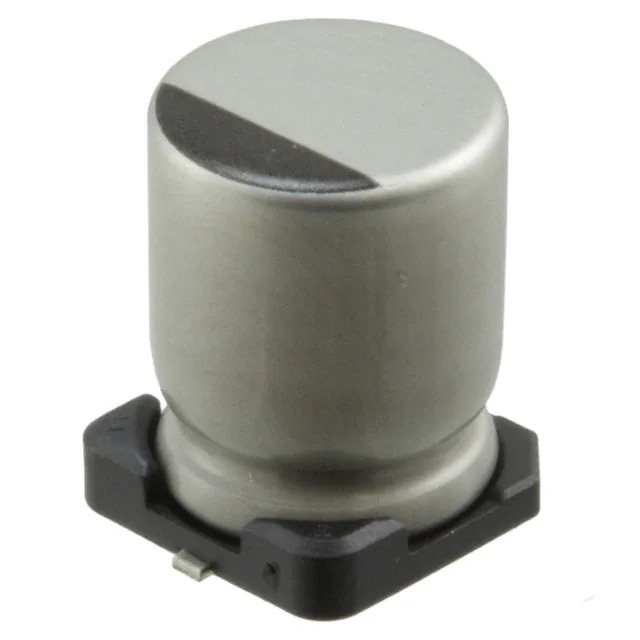

UWD1H101MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UWD1H101MCL1GS

Part No UWD1H101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UWD1H101MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 150 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360145-UWD1H101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1H101MCL1GS CAD Model

Description

The UWD1H101MCL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Series: UWD
  • Capacitance: 100 μF
  • Voltage - Rated: 50 V
  • Applications: General Purpose
  • Operating Temperature: -55°C to 105°C
  • Tolerance: ±20%
  • Ripple Current - Low Frequency: 150 mA @ 120 Hz
  • Ripple Current - High Frequency: 300 mA @ 100 kHz
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.413" (10.50mm)
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Packaging: Tape & Reel (TR)
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Polarization: Polar
  • Impedance: 340 mOhms
