Same model may have multiple batches, images only for reference.

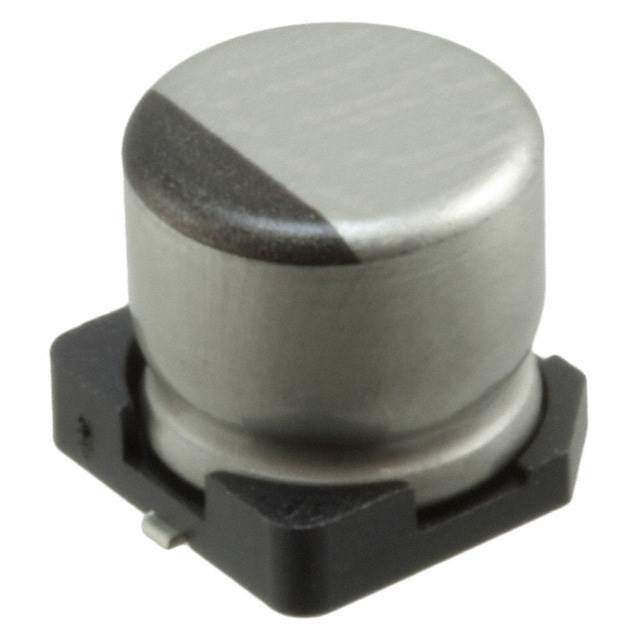

UWD1H100MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1H100MCL1GS

Part No UWD1H100MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V SMD / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UWD1H100MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 82.5 mA @ 120 Hz
Ripple Current @ High Frequency 165 mA @ 100 kHz
Impedance 880 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-6294-6,UWD1H100MCL1GS-ND,493-6294-2,493-6294-1
Standard Package 1,000
Win Source Part Number 996849-UWD1H100MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1H100MCL1GS CAD Model

Description

The Nichicon UWD1H100MCL1GS is a high-quality aluminum electrolytic capacitor that is widely used in various electronic devices. Nichicon is the manufacturer.

  • Capacitance: 10µF
  • Voltage Rating: 50V
  • Application: general-purpose applications
  • Tolerance: ±20%
  • Mounting: surface-mount device
  • Supply and Demand Status: limited supply and demand status
