Same model may have multiple batches, images only for reference.

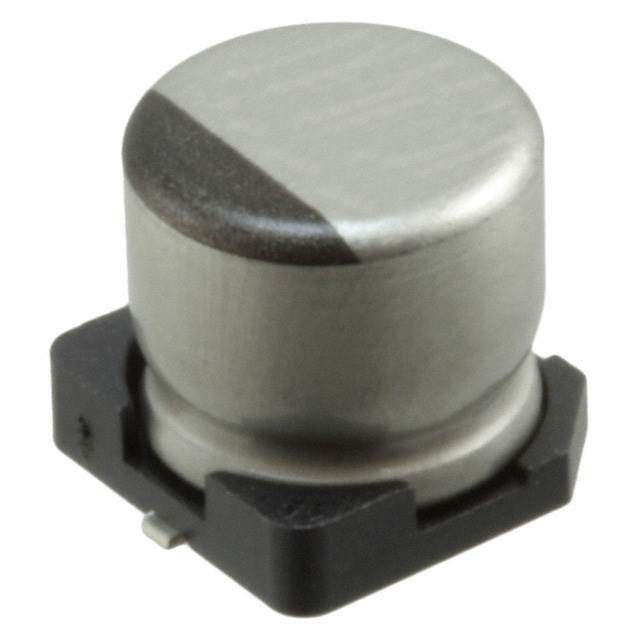

UWD1E470MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1E470MCL1GS

Part No UWD1E470MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V SMD / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UWD1E470MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 115 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 440 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-6292-6,493-6292-1,493-6292-2,UWD1E470MCL1GS-ND
Standard Package 1,000
Win Source Part Number 1178826-UWD1E470MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1E470MCL1GS CAD Model

Description

Nichicon's UWD1E470MCL1GS is a 47 µF, 25 V, ±20% tolerance, SMD (SMT) aluminum electrolytic capacitor from the UWD series.

  • Capacitance: 47 µF
  • Voltage: 25 V
  • Tolerance: ±20%
  • Height: 0.240'' (6.10mm)
  • Surface Mount Land Size: 0.260'' L x 0.260'' W (6.60mm x 6.60mm)
  • Package/Case: Radial, Can - SMD
  • Ripple Current (Low Frequency): 115 mA @ 120 Hz
  • Ripple Current (High Frequency): 230 mA @ 100 kHz
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polar
