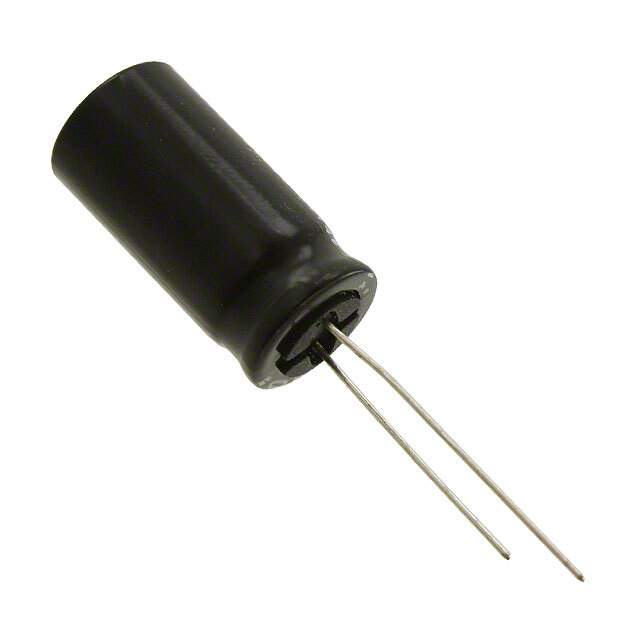

Same model may have multiple batches, images only for reference.

UVR2A331MHD

Name: UVR2A331MHD
Brand: Nichicon
SKU: 1339531
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR2A331MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 100V RADIAL / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	760 mA @ 120 Hz
Ripple Current @ High Frequency	1.14 A @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.984" (25.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	800
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339531-UVR2A331MHD
Ultra Librarian 3D Model	Ultra Librarian UVR2A331MHD CAD Model

Description

The Nichicon UVR2A331MHD is an aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 100V.

Capacitance: 330 µF
Voltage Rating: 100V
Tolerance: ±20%
Ripple Current: 760 mA @ 120 Hz and 1.14 A @ 10 kHz
Application: general purpose
Height: 0.984" (25.00mm)
Diameter: 0.492" (12.50mm)
Mounting Type: through hole
Package: radial, can
Lifetime: 2000 Hrs @ 85°C
Operating Temperature Range: -40°C ~ 85°C
Status: not for new designs
