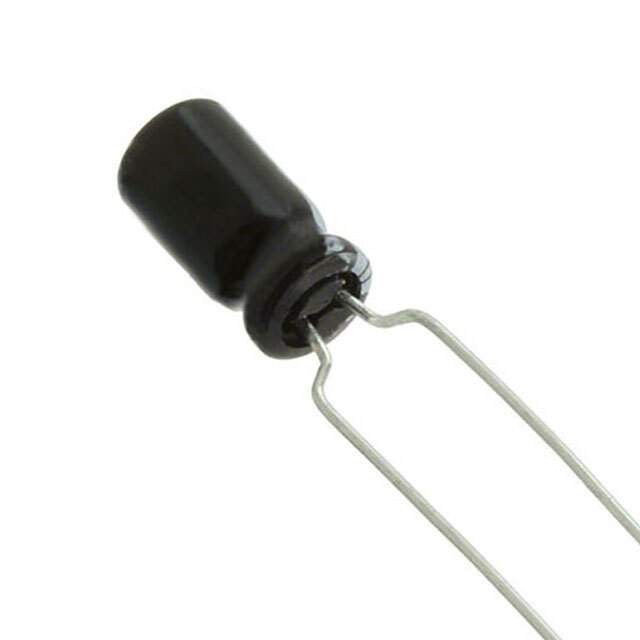

Same model may have multiple batches, images only for reference.

UVR2A0R1MDD1TA

Get a Quote

Part No	UVR2A0R1MDD1TA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 0.1UF 20% 100V RADIAL / 0.1 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Tape & Box (TB)
Product Status	Obsolete
Capacitance	0.1 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.1 mA @ 120 Hz
Ripple Current @ High Frequency	4.2 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1351741-UVR2A0R1MDD1TA
Ultra Librarian 3D Model	Ultra Librarian UVR2A0R1MDD1TA CAD Model

Description

The UVR2A0R1MDD1TA from Nichicon is an aluminum electrolytic capacitor that has a capacitance of 0.1 µF and a voltage rating of 100 V.

Tolerance: ±20%
Height: 0.492" (12.50mm)
Polarization: Polarized
Mounting Type: through-hole
Package/Case: radial, can
Ripple Current (Low Frequency): 2.1 mA @ 120 Hz
Ripple Current (High Frequency): 4.2 mA @ 10 kHz
Operating Temperature Range: -40°C to 85°C
Lifetime: 2000 Hrs @ 85°C
Application: general-purpose applications
