Same model may have multiple batches, images only for reference.

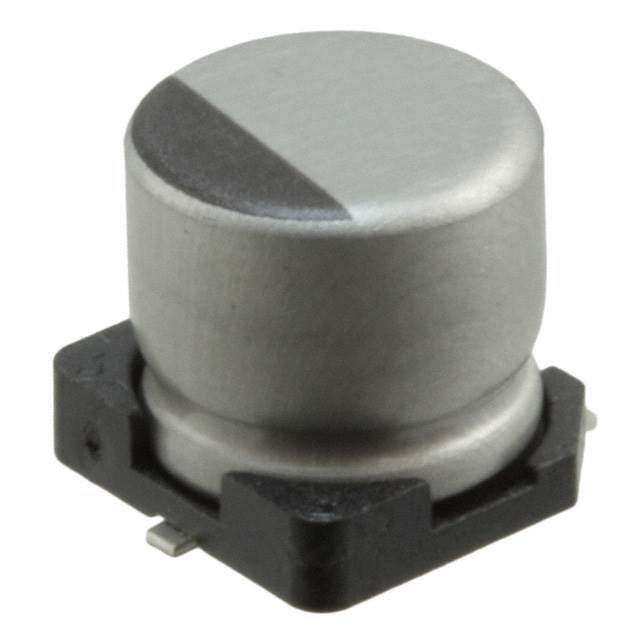

UUT1A101MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUT1A101MCL1GS

Part No UUT1A101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 10V SMD / 100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 60 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-9595-6,493-9595-2,UUT1A101MCL1GS-ND,493-9595-1
Standard Package 1,000
Win Source Part Number 1329924-UUT1A101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUT1A101MCL1GS CAD Model

Description

The UUT1A101MCL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 100 μF
  • Tolerance: ±20%
  • Voltage Rating: 10V
  • Type: Polarized
  • Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
  • Ripple Current (Low Frequency): 60 mA @ 120 Hz
  • Ripple Current (High Frequency): 90 mA @ 10 kHz
  • Win Source Part Number: 1329924-UUT1A101MCL1GS
  • Manufacturer Homepage: www.nichicon.co.jp
  • Supply and Demand Status: Unlimited
