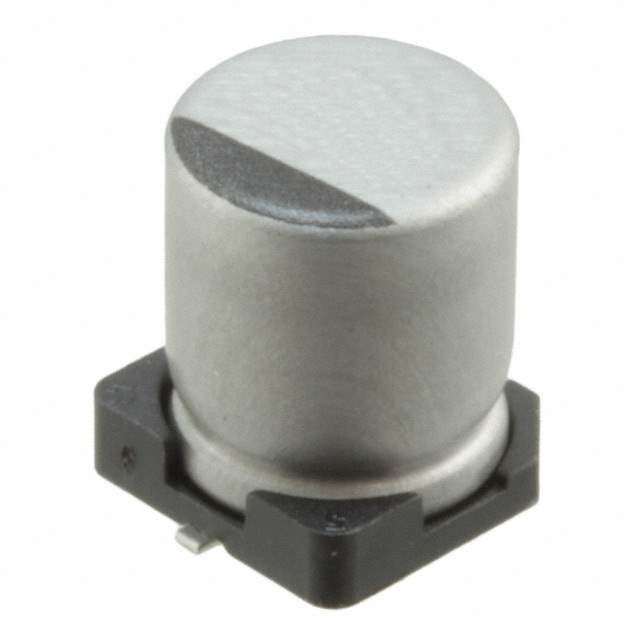

Same model may have multiple batches, images only for reference.

UUR1H470MCL6GS

Name: UUR1H470MCL6GS
Brand: Nichicon
SKU: 1350881
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UUR1H470MCL6GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	UUR1H470MCL6GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUR
Package	Tape & Reel
Product Status	Last Time Buy
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Applications	General Purpose
Ripple Current @ Low Frequency	105 mA @ 120 Hz
Ripple Current @ High Frequency	175.35 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.335" (8.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	900
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1350881-UUR1H470MCL6GS
Ultra Librarian 3D Model	Ultra Librarian UUR1H470MCL6GS CAD Model

Description

The UUR series aluminum electrolytic capacitor from Nichicon has a capacitance of 47µF and a voltage rating of 50V.

Capacitance: 47µF
Voltage Rating: 50V
Tolerance: ±20%
Height (Seated): 0.335 inches (8.50mm)
Ripple Current @ Low Frequency: 105mA
Ripple Current @ High Frequency: 175.35mA
Surface Mount Land Size: 0.327 inches L x 0.327 inches W (8.30mm x 8.30mm)
Package Size: 0.248 inches Diameter (6.30mm)
Application: General Purpose
Lifetime @ Temperature: 2000 Hours @ 85°C
Package: Tape and Reel
Standard Package: 900
MSL: Level 1 (Unlimited)
REACH: Unaffected
HTSUS: 8532.22.0020
