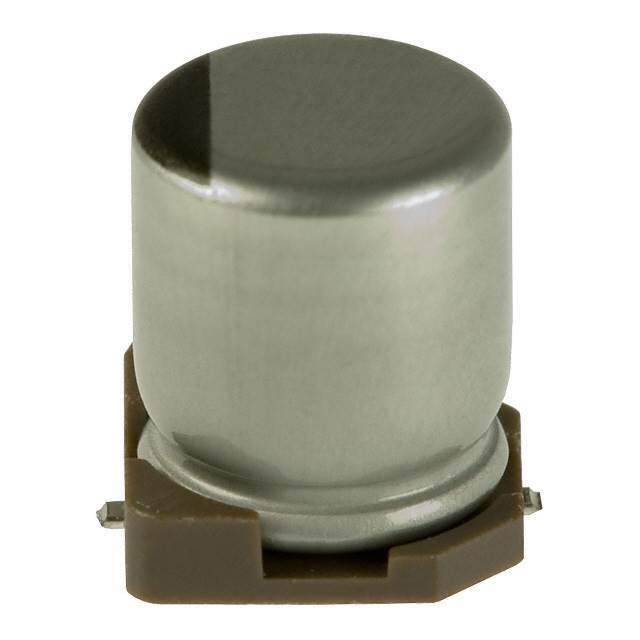

UUD1V560MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1V560MCL1GS

Part No UUD1V560MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 35V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nichicon
Packaging Reel
Capacitance 56μF
Tolerance ±20%
Voltage - Rated 35V
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 140mA at 120Hz
Ripple Current at High Frequency 280mA at 100kHz
Impedance 340 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 900
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803144-UUD1V560MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1V560MCL1GS CAD Model

Description

The Nichicon 803144-UUD1V560MCL1GS is a surface mount aluminum electrolytic capacitor with a capacitance of 56μF and a voltage rating of 35V.

  • Capacitance: 56μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Impedance: 340 mOhms
  • Polarization: Yes
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Operating Temperature Range: -55°C to 105°C
  • Dimension: 0.248" Dia (6.30mm)
  • Package: Radial, Can - SMD
  • Seated Height: 0.303" (7.70mm)
  • Supply and Demand Status: balanced
