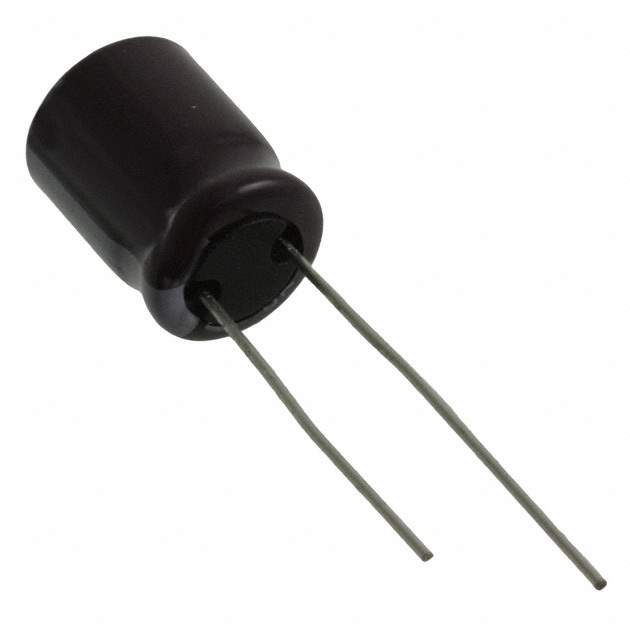

Same model may have multiple batches, images only for reference.

UPW1J101MPD

Name: UPW1J101MPD
Brand: Nichicon
SKU: 801720
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1J101MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 63V RADIAL / ALUMINUM ELECTROLYTIC CAPACITORS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Bulk
Capacitance	100μF
Tolerance	±20%
Voltage - Rated	63V
Lifetime at Temp.	5000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	Use For General
Ripple Current at Low Frequency	351mA at 120Hz
Impedance	256 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	0.492" (12.50mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can
Manufacturer Pack Quantity	200
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Sufficient
Win Source Part Number	801720-UPW1J101MPD
Ultra Librarian 3D Model	Ultra Librarian UPW1J101MPD CAD Model

Description

The Nichicon UPW1J101MPD is a polarized component suitable for general applications and has a sufficient supply and demand status.

Capacitance: 100μF
Tolerance: ±20%
Rated Voltage: 63V
Polarization: Polarized
Height: 0.492" (12.50mm)
Diameter: 0.394" (10.00mm)
Ripple Current: 351mA @ 120Hz
Lifetime @ Temp: 5000 Hrs @ 105°C
