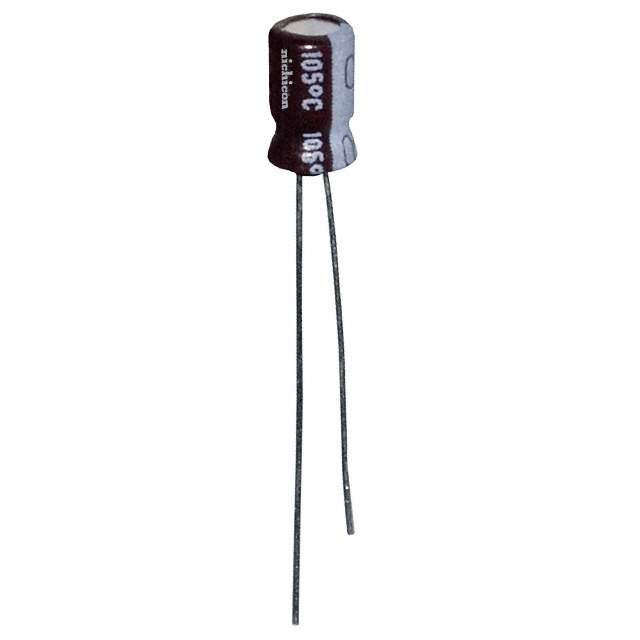

Same model may have multiple batches, images only for reference.

UPW1E100MDD6

Get a Quote

Part No	UPW1E100MDD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 25V RADIAL / 10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPW1E100MDD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Obsolete
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	19.5 mA @ 120 Hz
Ripple Current @ High Frequency	65 mA @ 100 kHz
Impedance	2 Ohms
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1351874-UPW1E100MDD6
Ultra Librarian 3D Model	Ultra Librarian UPW1E100MDD6 CAD Model

Description

The UPW1E100MDD6 is a 10 μF aluminum electrolytic capacitor that is ideal for use in general-purpose applications.

Capacitance: 10 μF
Application: General-Purpose
Tolerance: ±20%
Voltage Rating: 25 V
Ripple Current: 19.5 mA @ 120 Hz and 65 mA @ 100 kHz
Package: Radial, Can
Mounting Type: Through-Hole
Height: 0.276" (7.00mm)
Diameter: 0.157" (4.00mm)
Operating Temperature: -55°C to 105°C
Lifecycle Status: Obsolete
