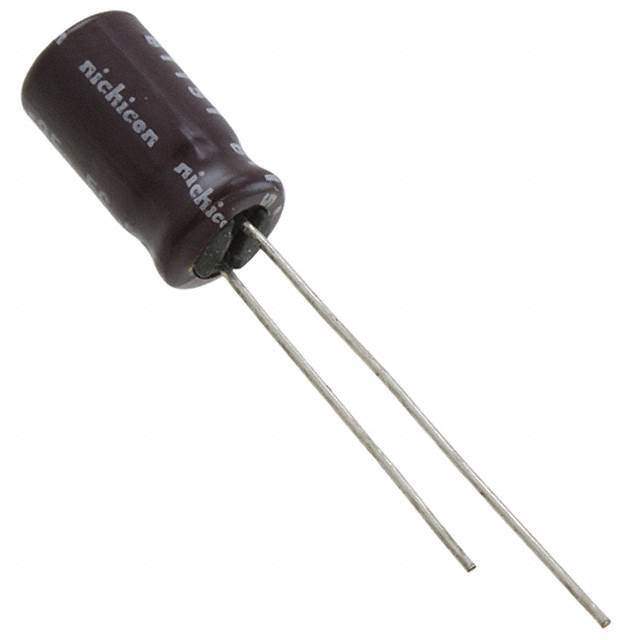

Same model may have multiple batches, images only for reference.

UPM1V470MED

Name: UPM1V470MED
Brand: Nichicon
SKU: 1383803
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UPM1V470MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 35V RADIAL / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPM1V470MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Obsolete
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	160 mA @ 120 Hz
Ripple Current @ High Frequency	270 mA @ 10 kHz
Impedance	340 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	4,000 pcs
Win Source Part Number	1383803-UPM1V470MED
Ultra Librarian 3D Model	Ultra Librarian UPM1V470MED CAD Model

Description

The 1383803-UPM1V470MED is an aluminum electrolytic capacitor from the UPM series by Nichicon.

Capacitance: 47µF
Voltage Rating: 35V
Tolerance: ±20%
Package: Bulk
Size/Dimension: 0.248" diameter
Height When Seated: 0.492"
Application: General-Purpose
Standard Package: 4,000 pieces
Lead Spacing: 0.098"
Impedance: 340 mOhms
Lifetime: 2000 hours @ 105°C
Polarization: Polar
Mounting Type: Through-Hole
Package/Case: Radial, can
Operating Temperature Range: -55°C to 105°C
REACH Compliance: Yes
ECCN: EAR99
Moisture Sensitivity Level: Not Applicable
Status: Obsolete
