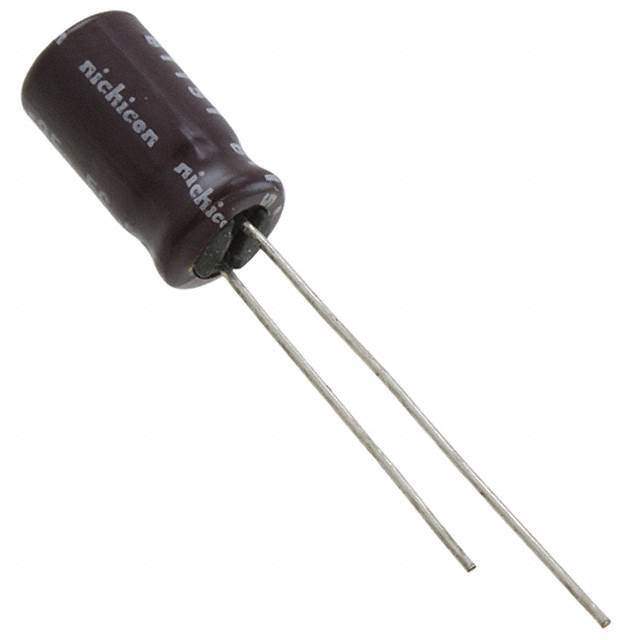

Same model may have multiple batches, images only for reference.

UPM1V330MED

Name: UPM1V330MED
Brand: Nichicon
SKU: 1158310
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1V330MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 35V RADIAL / 33 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	125 mA @ 120 Hz
Ripple Current @ High Frequency	225 mA @ 10 kHz
Impedance	490 mOhms
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	UPM1V330MED-ND,493-15787
Standard Package	4,000
Win Source Part Number	1158310-UPM1V330MED
Ultra Librarian 3D Model	Ultra Librarian UPM1V330MED CAD Model

Description

The UPM1V330MED is a 33µF, 35V aluminum electrolytic capacitor from Nichicon's UPM series.

Capacitance: 33µF
Voltage: 35V
Polarization: Polar
Impedance: 490mΩ
ESR: Not specified
Package: Radial, can
Mounting: Through-hole
Height: 0.492" (12.50mm)
Diameter: 0.248" (6.30mm)
Temperature Range: -55°C to 105°C
REACH Compliant: Yes
