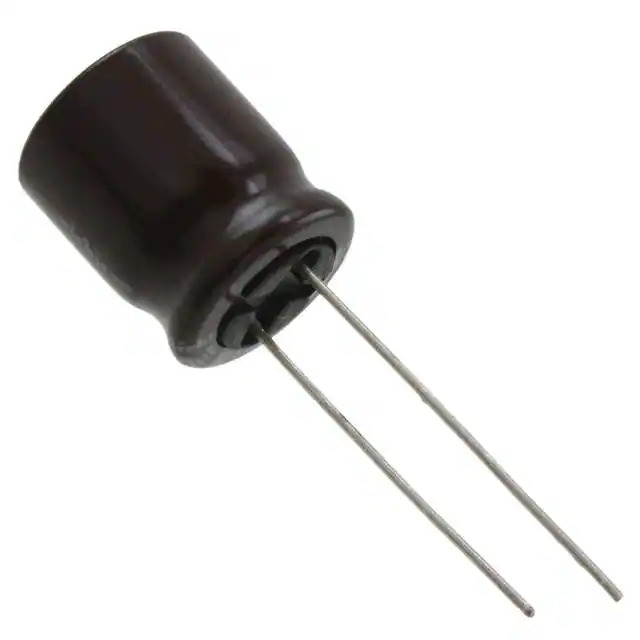

UPM1J100MDD

Name: UPM1J100MDD
Brand: Nichicon
SKU: 1357759
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1J100MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 63V RADIAL / 10 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPM1J100MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Obsolete
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	67 mA @ 120 Hz
Ripple Current @ High Frequency	135 mA @ 10 kHz
Impedance	1.06 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357759-UPM1J100MDD
Ultra Librarian 3D Model	Ultra Librarian UPM1J100MDD CAD Model

Description

The 1357759-UPM1J100MDD is an aluminum electrolytic capacitor from Nichicon's UPM series.

Mounting Type: Through-hole
Capacitance: 10 μF
Voltage Rating: 63 V
Tolerance: ±20%
Application: General-purpose
Ripple Current: 67 mA @ 120 Hz
Ripple Current: 135 mA @ 10 kHz
Lead Spacing: 0.079"
Size: 0.197" in diameter and 0.492" in height
Lifetime: 2000 hours @ 105°C
REACH: Unaffected
