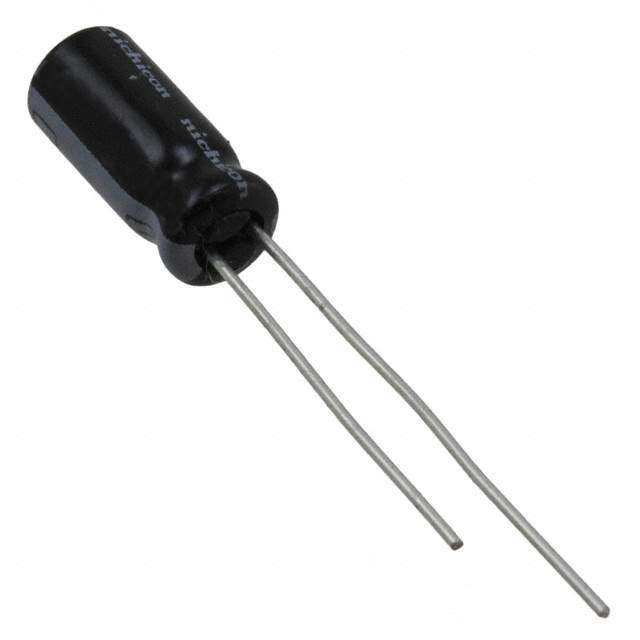

Same model may have multiple batches, images only for reference.

UKL1H2R2KDDANA

Name: UKL1H2R2KDDANA
Brand: Nichicon
SKU: 1339729
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UKL1H2R2KDDANA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2.2UF 10% 50V RADIAL / 2.2 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	UKL1H2R2KDDANA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UKL
Package	Bulk
Product Status	Not For New Designs
Capacitance	2.2 µF
Tolerance	±10%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	23 mA @ 120 Hz
Ripple Current @ High Frequency	46 mA @ 10 kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339729-UKL1H2R2KDDANA
Ultra Librarian 3D Model	Ultra Librarian UKL1H2R2KDDANA CAD Model

Description

The Nichicon aluminum electrolytic capacitor is a high-quality capacitor designed for general-purpose applications.

Manufacturer: Nichicon
Application: General-purpose
Capacitance: 2.2μF
Voltage Rating: 50V
Tolerance: ±10%
Polarization: Polarized
Standard Package: 200
Mounting Type: Through-hole
Ripple Current: 23mA @ 120Hz, 46mA @ 10kHz
Diameter: 0.197 inches
Height: 0.472 inches
Series: UKL
ECCN: EAR99
Not For New Designs: Yes
Lifetime: 1000 hours @ 105°C
