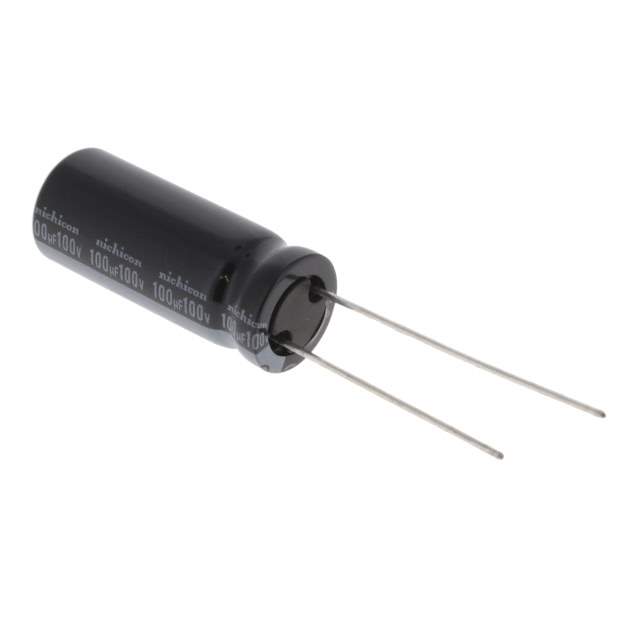

UHE2A101MPD Real Image
Same model may have multiple batches, images only for reference.

UHE2A101MPD

Part No UHE2A101MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V RADIAL / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 416.5 mA @ 120 Hz
Impedance 200 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-1668
Standard Package 1,200
Win Source Part Number 965032-UHE2A101MPD
Ultra Librarian 3D Model Ultra Librarian UHE2A101MPD CAD Model

Description

This aluminum electrolytic capacitor is a part of the UHE series and is designed for general purpose applications.

  • Series: UHE
  • Application: General Purpose
  • Capacitance: 100 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Impedance: 200 mOhms
  • Polarization: Polarized
  • Package/Case: Radial, Can
  • Seated Height: 0.984" (25.00mm)
  • Diameter: 0.394" (10.00mm)
  • Lifetime: 7000 Hrs @ 105°C
  • Operating Temperature Range: -40°C to 105°C
  • ESR: Not specified
  • Manufacturer: Nichicon
  • Alternate Parts: 100YXG100MEFC10X23, EKY-800ELL101MJ16S, EKY-800ETD101MJ16S, EEU-FC2A101, EKYA101ELL101MJ20S, and UPW2A101MHD1TO
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS: 8532.22
  • MSL Level: Not applicable
