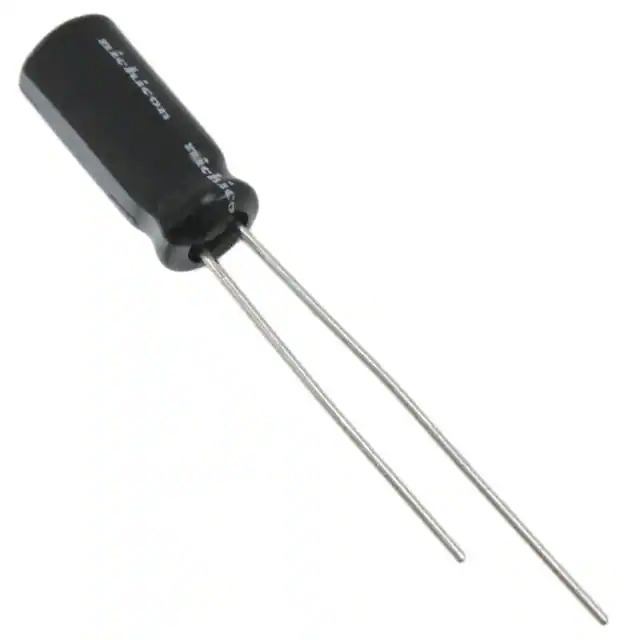

Same model may have multiple batches, images only for reference.
UHE1H2R2MDD Nichicon
Same model may have multiple batches, images only for reference.

UHE1H2R2MDD

Part No UHE1H2R2MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2.2UF 20% 50V RADIAL / 2.2 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UHE1H2R2MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Obsolete
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 23.65 mA @ 120 Hz
Ripple Current @ High Frequency 43 mA @ 100 kHz
Impedance 2.5 Ohms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357642-UHE1H2R2MDD
Ultra Librarian 3D Model Ultra Librarian UHE1H2R2MDD CAD Model

Description

The UHE1H2R2MDD is an aluminum electrolytic capacitor from Nichicon's UHE series.

  • Capacitance: 2.2 μF
  • Voltage - Rated: 50 V
  • Applications: General Purpose
  • Tolerance: ±20%
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Ripple Current - Low Frequency: 23.65 mA @ 120 Hz
  • Ripple Current - High Frequency: 43 mA @ 100 kHz
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 2.00mm
  • Product Status: Obsolete
  • Packaging: Bulk
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
  • Impedance: 2.5 Ohms
