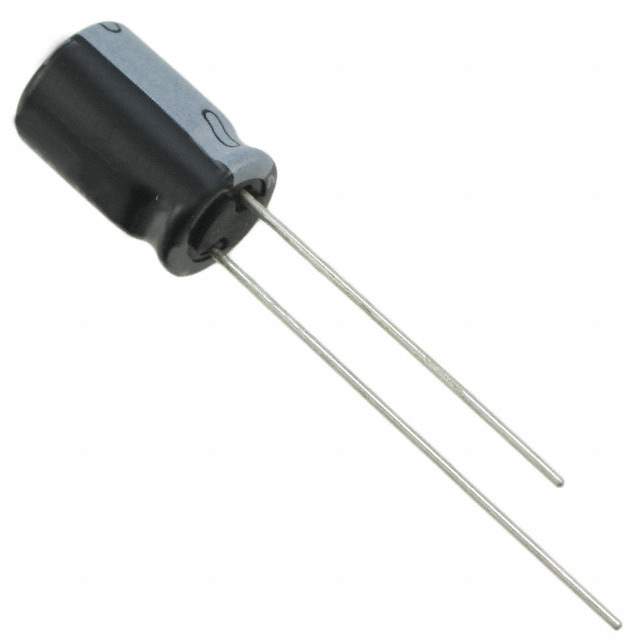

UHE1H101MPD1TD Real Image
Same model may have multiple batches, images only for reference.

UHE1H101MPD1TD

Part No UHE1H101MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 388.5 mA @ 120 Hz
Ripple Current @ High Frequency 555 mA @ 100 kHz
Impedance 170 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-14545-2-ND,493-14545-3,UHE1H101MPD1TD-ND,493-14545-1,493-14545-2
Standard Package 1,000
Win Source Part Number 984876-UHE1H101MPD1TD
Ultra Librarian 3D Model Ultra Librarian UHE1H101MPD1TD CAD Model

Description

The Nichicon UHE1H101MPD1TD is a high-quality aluminum electrolytic capacitor that is designed to provide efficient performance in various applications.

  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Ripple Current: 388.5 mA @ 120 Hz
  • Ripple Current: 555 mA @ 100 kHz
