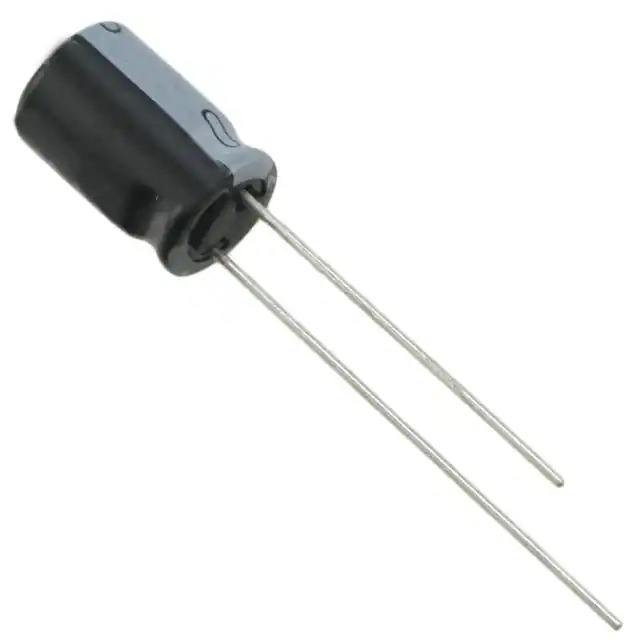

UHE1E471MPD1TD Nichicon
Same model may have multiple batches, images only for reference.

UHE1E471MPD1TD

Part No UHE1E471MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V RADIAL / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet
UHE1E471MPD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 787.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.05 A @ 100 kHz
Impedance 69 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357953-UHE1E471MPD1TD
Ultra Librarian 3D Model Ultra Librarian UHE1E471MPD1TD CAD Model

Description

The UHE series aluminum electrolytic capacitor from Nichicon is a high-quality component designed for general-purpose applications.

  • Series: UHE
  • Capacitance: 470 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 787.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.05 A @ 100 kHz
  • Size: 0.315 inches (8.00mm) Diameter
  • Height: 0.866 inches (22.00mm)
  • Mounting Type: Through-Hole
  • Lifetime: 7000 hours @ 105°C
  • Polarization: Polarized
  • Polarization Marking: Yes
  • REACH Status: Unaffected
  • ECCN: EAR99
