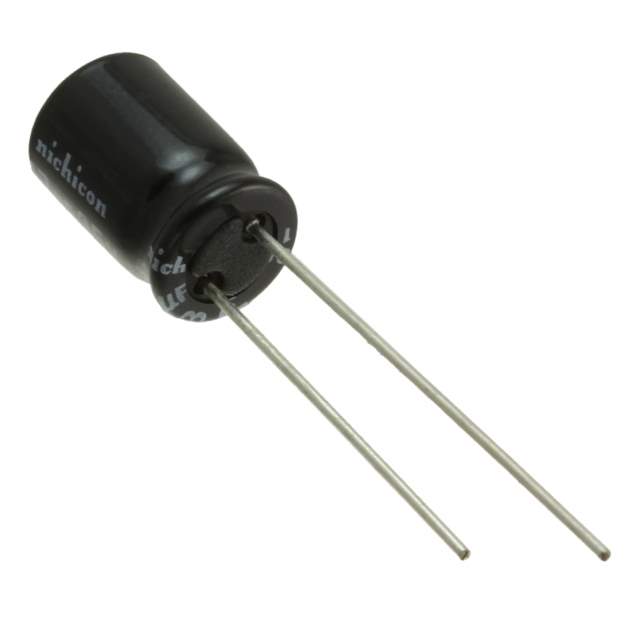

Same model may have multiple batches, images only for reference.

UEP1C101MPD

Name: UEP1C101MPD
Brand: Nichicon
SKU: 1338157
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UEP1C101MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 16V RADIAL / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	UEP1C101MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UEP
Package	Bulk
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Bi-Polar
Applications	General Purpose
Ripple Current @ Low Frequency	110 mA @ 120 Hz
Ripple Current @ High Frequency	165 mA @ 10 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	3,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1338157-UEP1C101MPD
Ultra Librarian 3D Model	Ultra Librarian UEP1C101MPD CAD Model

Description

The UEP1C101MPD is an aluminum electrolytic capacitor from Nichicon.

Series: UEP
Capacitance: 100 µF
Voltage Rating: 16 V
Tolerance: ±20%
General-Purpose: Yes
Package: Radial, Can
Diameter: 0.315 inches
Height: 0.512 inches when seated
Ripple Current @ Low Frequency: 110 mA
Ripple Current @ High Frequency: 165 mA
