Same model may have multiple batches, images only for reference.

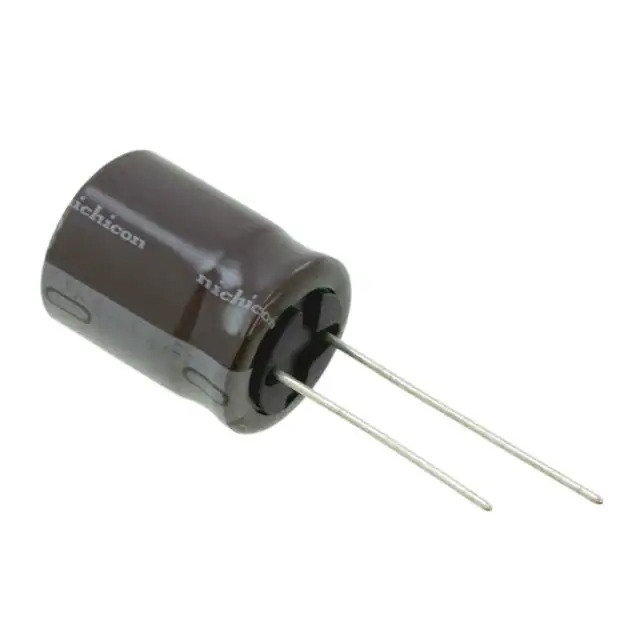

UCS2E820MHD Nichicon
Same model may have multiple batches, images only for reference.

UCS2E820MHD

Part No UCS2E820MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 82UF 20% 250V RADIAL / 82 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UCS2E820MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCS
Package Bulk
Product Status Active
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 690 mA @ 120 Hz
Ripple Current @ High Frequency 1.38 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357848-UCS2E820MHD
Ultra Librarian 3D Model Ultra Librarian UCS2E820MHD CAD Model

Description

The UCS2E820MHD is an aluminum electrolytic capacitor from Nichicon.

  • Series: UCS
  • Application: General Purpose
  • Capacitance: 82μF
  • Voltage Rating: 250V
  • Tolerance: ±20%
  • Temperature Range: -40°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Diameter: 0.630"
  • Height: 0.846"
  • Ripple Current (Low Frequency): 690mA @ 120Hz
  • Ripple Current (High Frequency): 1.38A @ 100kHz
  • Lead Spacing: 0.295" (7.50mm)
  • Lifetime: 10000 hours @ 105°C
