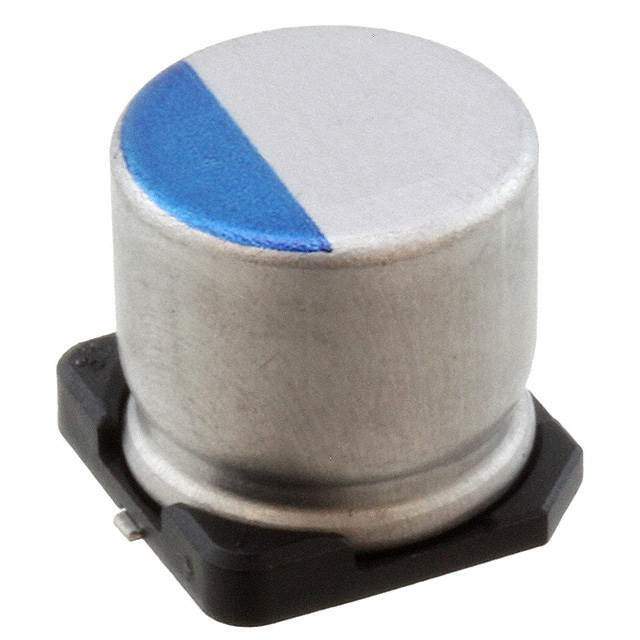

Same model may have multiple batches, images only for reference.

PCV1J560MCL2GS

Name: PCV1J560MCL2GS
Brand: Nichicon
SKU: 1349973
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PCV1J560MCL2GS
Manufacturer	Nichicon
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 56UF 20% 63V SMD / 56 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C
Datasheet	PCV1J560MCL2GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Nichicon
Series	PCV
Package	Tape & Reel
Type	Polymer
Capacitance	56 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	28mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	3.4 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349973-PCV1J560MCL2GS
Ultra Librarian 3D Model	Ultra Librarian PCV1J560MCL2GS CAD Model

Description

This aluminum polymer capacitor by Nichicon is a high-quality electronic component that is perfect for use in a variety of applications.

Capacitor Type: Aluminum Polymer
Series: PCV
Capacitance: 56μF
Tolerance: ±20%
Mounting Type: Surface Mount
Package: Radial, Can-SMD
