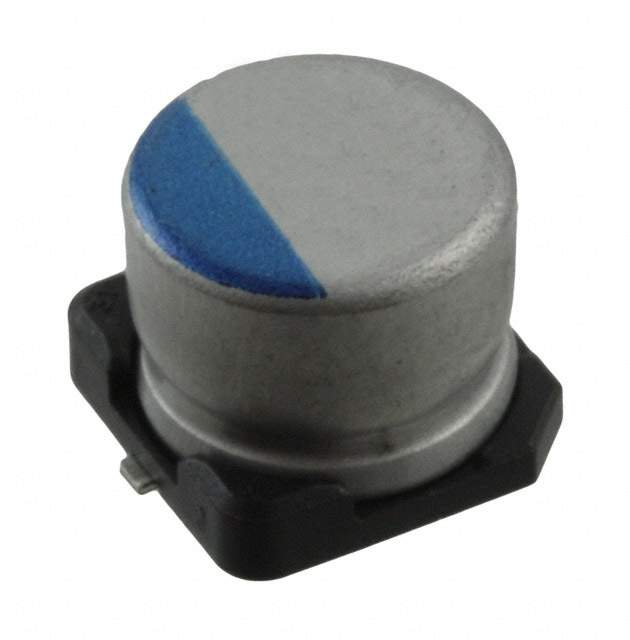

PCV1J100MCL1GS Real Image
Same model may have multiple batches, images only for reference.

PCV1J100MCL1GS

Part No PCV1J100MCL1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 10UF 20% 63V SMD / 10 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 75mOhm 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Type Polymer
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 75mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 1 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-4398-1,493-4398-2,493-4398-6
Standard Package 1,000
Win Source Part Number 1328496-PCV1J100MCL1GS
Ultra Librarian 3D Model Ultra Librarian PCV1J100MCL1GS CAD Model

Description

The PCV1J100MCL1GS is an aluminum-polymer capacitor that falls under the category of capacitors.

  • Manufacturer:
  • Package: reel-TR
  • Size/Dimension: 0.315 inches in diameter (8.00mm)
  • Mounting Technology: surface mount technology
  • Capacitance: 10 µF
  • Tolerance: ±20%
  • Voltage Rating: 63V
  • ESR: 75mOhm
  • Lifetime: 3000 hours @ 105°C
  • Operating Temperature: -55°C to 105°C
  • Ripple Current: 1 A @ 100 kHz
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
