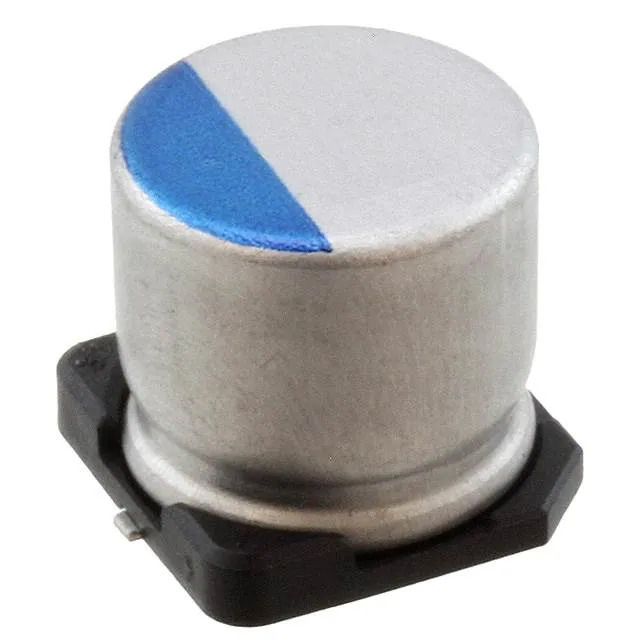

Same model may have multiple batches, images only for reference.

PCV1H680MCL1GS

Name: PCV1H680MCL1GS
Brand: Nichicon
SKU: 1359546
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PCV1H680MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 68UF 20% 50V SMD / 68 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 29mOhm 3000 Hrs @ 105°C
Datasheet	PCV1H680MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Nichicon
Series	PCV
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	29mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.6 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359546-PCV1H680MCL1GS
Ultra Librarian 3D Model	Ultra Librarian PCV1H680MCL1GS CAD Model

Description

The PCV1H680MCL1GS is a radial, surface mount aluminum polymer capacitor from Nichicon.

Series: PCV
Application: General-Purpose
Capacitance: 68μF
Voltage Rating: 50V
Temperature Range: -55°C to 105°C
Lifetime: 3000 hours @ 105°C
Size: 0.394" (10.00mm) diameter and 0.500" (12.70mm) height
ESR: 29mOhm
Ripple Current: 2.6A @ 100kHz
Polarized: Yes
Mounting Technology: Surface Mount
REACH Compliance: Complies
ECCN Classification: EAR99
