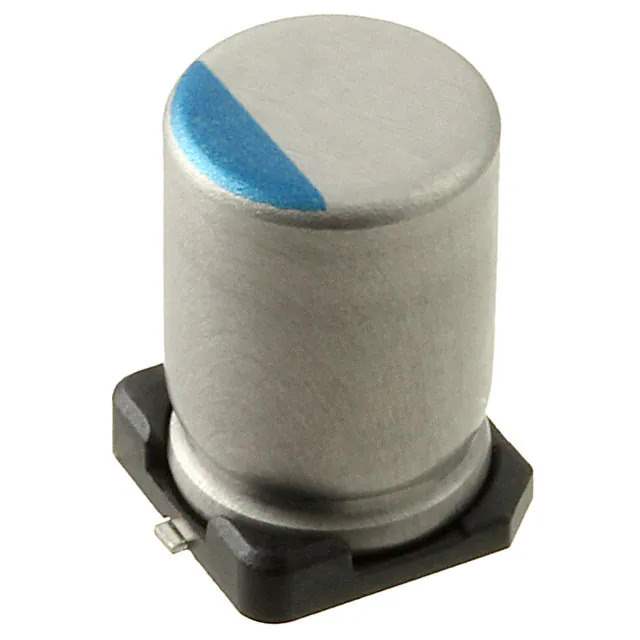

PCR1D471MCL1GS Real Image
Same model may have multiple batches, images only for reference.

PCR1D471MCL1GS

Part No PCR1D471MCL1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 470UF 20% 20V SMD
Datasheet
PCR1D471MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Nichicon
Series PCR
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 18mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 3.5 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 400 pcs
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 848251-PCR1D471MCL1GS
Ultra Librarian 3D Model Ultra Librarian PCR1D471MCL1GS CAD Model

Description

The PCR1D471MCL1GS is a polymer capacitor from the PCR series by Nichicon.

  • Series: PCR
  • Applications: Automotive
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.315" (8.00mm) Diameter
  • Standard Package: 400 Pieces
  • Capacitance: 470µF
  • Tolerance: ±20%
  • Voltage - Rated: 20V
  • AEC-Q200: Yes
  • ESR (Equivalent Series Resistance): 18mOhm
  • Lifetime @ Temp.: 4000 Hours @ 125°C
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Package / Case: Radial, Can - SMD
  • Operating Temperature: -55°C to 125°C
  • REACH: Affected
  • HTSUS Code: 8532.22.0020
  • Product Status: Active
  • Ripple Current @ High Frequency: 3.5A @ 100kHz
