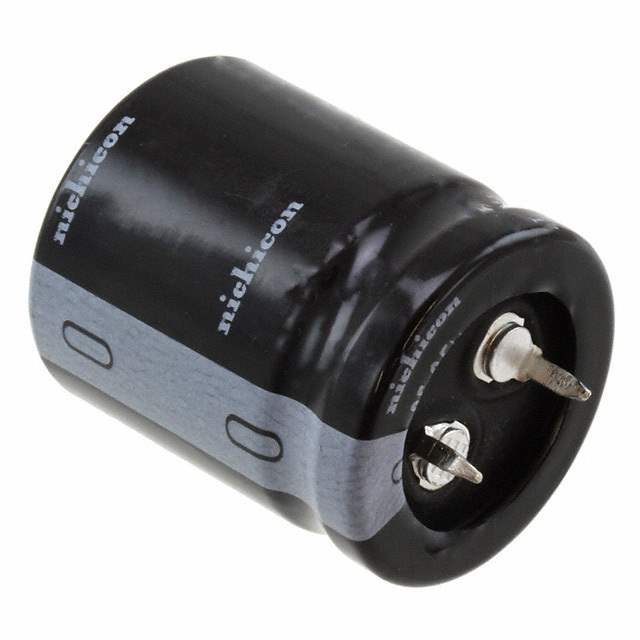

Same model may have multiple batches, images only for reference.

LLS1J332MELA

Name: LLS1J332MELA
Brand: Nichicon
SKU: 180898
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LLS1J332MELA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3300UF 20% 63V SNAP
Datasheet	LLS1J332MELA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Bulk
Status	Active
Capacitance	3300μF
Tolerance	±20%
Voltage Rating	63V
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C to 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	2.74A @ 120Hz
Ripple Current - High Frequency	3.151A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Mounting	Through Hole
Dimension	Radial, Can - Snap-In
Win Source Part Number	090394-LLS1J332MELA
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian LLS1J332MELA CAD Model

Description

The Nichicon 090394-LLS1J332MELA is a bulk-packaged, through-hole, polarized capacitor with a capacitance of 3300μF and a voltage rating of 63V.

Capacitance: 3300μF
Voltage Rating: 63V
Tolerance: ±20%
Lead Spacing: 0.394" (10.00mm)
Application: General Purpose
Lifetime: 3000 Hrs @ 85°C
Ripple Current - Low Frequency: 2.74A @ 120Hz
Ripple Current - High Frequency: 3.151A @ 50kHz
Category: Capacitors
Market Status: Active
Supply and Demand Status: Limited
