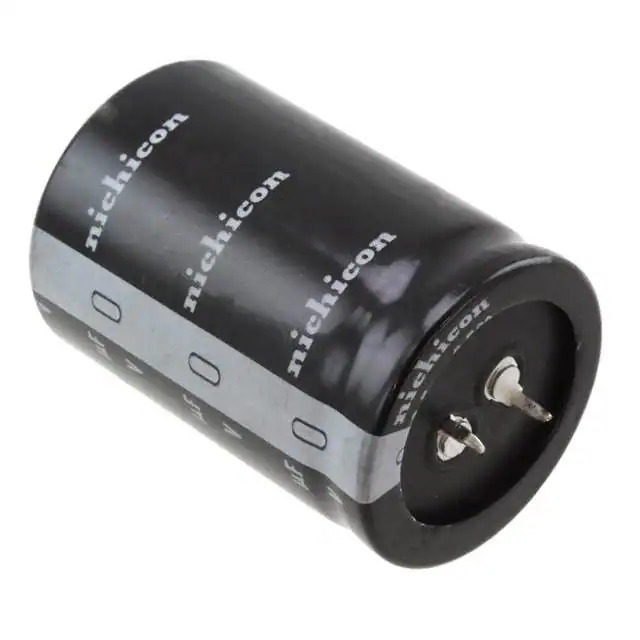

Same model may have multiple batches, images only for reference.

LLG2D332MELC50

Name: LLG2D332MELC50
Brand: Nichicon
SKU: 1360661
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LLG2D332MELC50
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3300UF 20% 200V SNAP / 3300 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Datasheet	LLG2D332MELC50 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLG
Package	Bulk
Product Status	Active
Capacitance	3300 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	4.42 A @ 120 Hz
Ripple Current @ High Frequency	6.63 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360661-LLG2D332MELC50
Ultra Librarian 3D Model	Ultra Librarian LLG2D332MELC50 CAD Model

Description

The LLG2D332MELC50 is an aluminum electrolytic capacitor from Nichicon.

Applications: General-Purpose
Capacitance: 3300 µF
Voltage Rating: 200 V
Tolerance: ±20%
Temperature Range: -40°C to 85°C
Package: Radial, Can - Snap-In
Mounting Type: Through-Hole
Size: 1.378" diameter (35.00mm)
Height: 2.047" (52.00mm)
Lead Spacing: 0.394" (10.00mm)
Ripple Current (Low Frequency): 4.42 A @ 120 Hz
Ripple Current (High Frequency): 6.63 A @ 50 kHz
