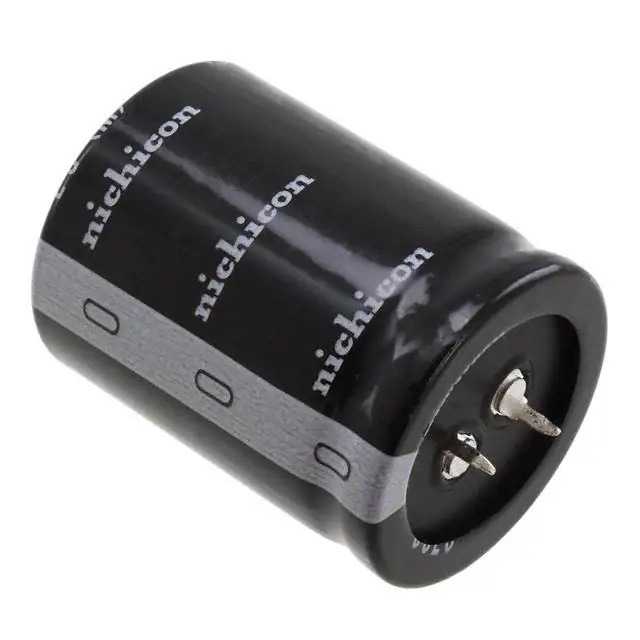

LLG2D272MELC45 Nichicon
Same model may have multiple batches, images only for reference.

LLG2D272MELC45

Part No LLG2D272MELC45
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2700UF 20% 200V SNAP / 2700 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Datasheet
LLG2D272MELC45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLG
Package Bulk
Product Status Active
Capacitance 2700 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 4.34 A @ 120 Hz
Ripple Current @ High Frequency 6.51 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360681-LLG2D272MELC45
Ultra Librarian 3D Model Ultra Librarian LLG2D272MELC45 CAD Model

Description

The 1360681-LLG2D272MELC45 is an aluminum electrolytic capacitor from Nichicon.

  • Series: LLG
  • Capacitance: 2700µF
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Through Hole
  • Package: Bulk
  • Voltage Rating: 200V
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 85°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 4.34A @ 120Hz
  • Ripple Current (High Frequency): 6.51A @ 50kHz
  • Size: 1.378" Dia (35.00mm)
  • Seated Height (Max): 1.850" (47.00mm)
  • REACH Status: Unaffected
  • ECCN: EAR99
