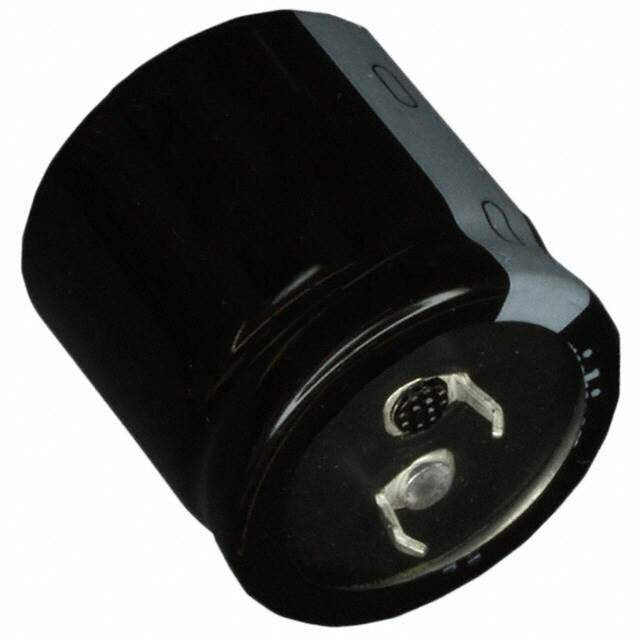

Same model may have multiple batches, images only for reference.

LGW2D182MELB50

Name: LGW2D182MELB50
Brand: Nichicon
SKU: 1351112
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LGW2D182MELB50
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1800UF 20% 200V SNAP / 1800 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGW2D182MELB50 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGW
Package	Bulk
Capacitance	1800 µF
Tolerance	±20%
Voltage - Rated	200 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	5.22 A @ 120 Hz
Ripple Current @ High Frequency	7.83 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1351112-LGW2D182MELB50
Ultra Librarian 3D Model	Ultra Librarian LGW2D182MELB50 CAD Model

Description

This LGW series aluminum electrolytic capacitor is designed for general purpose applications.

Capacitance: 1800 µF
Voltage Rating: 200 V
Polarization: Polar
Tolerance: ±20%
ESR (Equivalent Series Resistance): Not Specified
Lifetime @ Temperature: 3000 hours @ 105°C
Package/Case: Radial, Can-Snap-In
Lead Spacing: 0.394" (10.00mm)
Ripple Current @ Low Frequency: 5.22 A @ 120 Hz
Ripple Current @ High Frequency: 7.83 A @ 50 kHz
Height-Seated (Max): 1.969" (50.00mm)
Surface Mount Land Size: Not Specified
Mounting Type: Through-Hole
Packaging: Bulk package of 200
