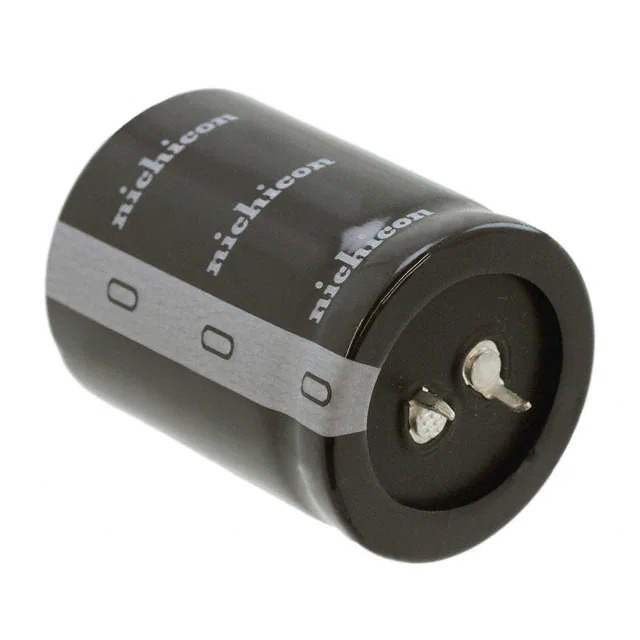

LGN2G681MELC45 Nichicon
Same model may have multiple batches, images only for reference.

LGN2G681MELC45

Part No LGN2G681MELC45
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 400V SNAP / 680 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGN2G681MELC45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGN
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.12 A @ 120 Hz
Ripple Current @ High Frequency 3.0316 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360706-LGN2G681MELC45
Ultra Librarian 3D Model Ultra Librarian LGN2G681MELC45 CAD Model

Description

The 1360706-LGN2G681MELC45 is an aluminum electrolytic capacitor from Nichicon's LGN series.

  • Manufacturer: Nichicon
  • Series: LGN
  • Application: General Purpose
  • Capacitance: 680 µF
  • Voltage - Rated: 400 V
  • Tolerance: ±20%
  • Polarization: Polar
  • Ripple Current @ Low Frequency: 2.12 A @ 120 Hz
  • Ripple Current @ High Frequency: 3.0316 A @ 50 kHz
  • Lead Spacing: 10.00mm
  • Size / Dimension: 35.00mm Dia
  • Mounting Type: Through Hole
  • Height - Seated (Max): 47.00mm
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Package / Case: Radial, Can - Snap-In
  • Status: Active
  • REACH SVHC Status: Unaffected
