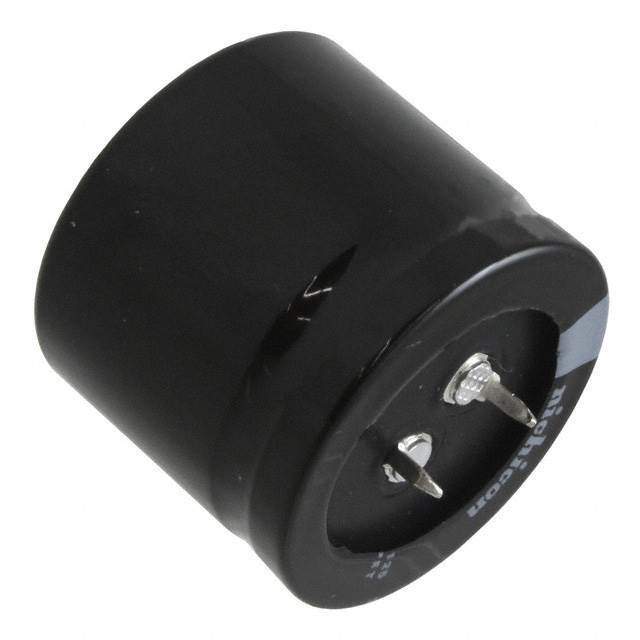

Same model may have multiple batches, images only for reference.

LGN2D122MELC30

Name: LGN2D122MELC30
Brand: Nichicon
SKU: 1341497
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LGN2D122MELC30
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1200UF 20% 200V SNAP / 1200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGN2D122MELC30 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGN
Package	Bulk
Capacitance	1200 µF
Tolerance	±20%
Voltage - Rated	200 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.65 A @ 120 Hz
Ripple Current @ High Frequency	3.975 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1341497-LGN2D122MELC30
Ultra Librarian 3D Model	Ultra Librarian LGN2D122MELC30 CAD Model

Description

The Nichicon LGN2D122MELC30 is a radial, can - snap-in capacitor that is part of the LGN series.

Series: LGN
Capacitance: 1200 μF
Tolerance: ±20%
Rated Voltage: 200 V
Operating Temperature: -40°C to 105°C
Ripple Current (120 Hz): 2.65 A
Ripple Current (50 kHz): 3.975 A
Lifetime: 3000 hours @ 105°C
Polarized: Yes
Lead Spacing: 0.394" (10.00mm)
Package: Bulk
Standard Package: 200
REACH: Unaffected
HTSUS: 8532.22.0040
