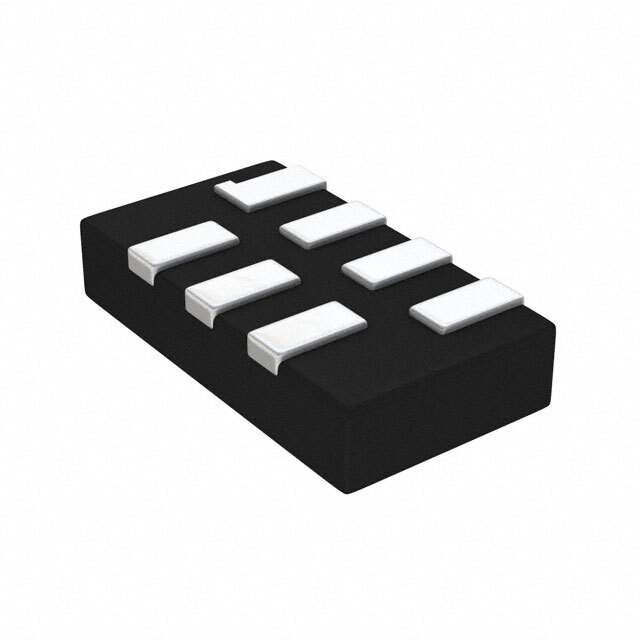

PUSB3AB6Z real image13 PUSB3AB6Z Real Image
Same model may have multiple batches, images only for reference.
PUSB3AB6Z real image13 PUSB3AB6Z Real Image
PUSB3AB6Z real image13 PUSB3AB6Z Real Image
Same model may have multiple batches, images only for reference.

PUSB3AB6Z

Part No PUSB3AB6Z
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 6VC 7XSON
Datasheet
PUSB3AB6Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 6
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 6V (Typ)
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 7-XFDFN
Supplier Device Package 7-XSON (1.1x2.1)
Base Product Number PUSB3
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 931102-PUSB3AB6Z
Ultra Librarian 3D Model Ultra Librarian PUSB3AB6Z CAD Model

Description

The 931102-PUSB3AB6Z is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose circuit protection.

  • Packaging: Tape and reel
  • Standard Package: 4,000 pieces
  • Channels: 6 bidirectional channels
  • Reverse Standoff Voltage (Maximum): 3.3V
  • Breakdown Voltage (Minimum): 6V
  • Clamping Voltage @ Peak Pulse Current (Typical): 6V
  • Peak Pulse Current: 5A (10/1000µs)
  • Mounting: Surface mountable
  • Package/Case: 7-XFDFN
  • Supplier Device Package: 7-XSON (1.1x2.1)
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Manufacturer: Nexperia USA Inc.
  • Product Status: Active
