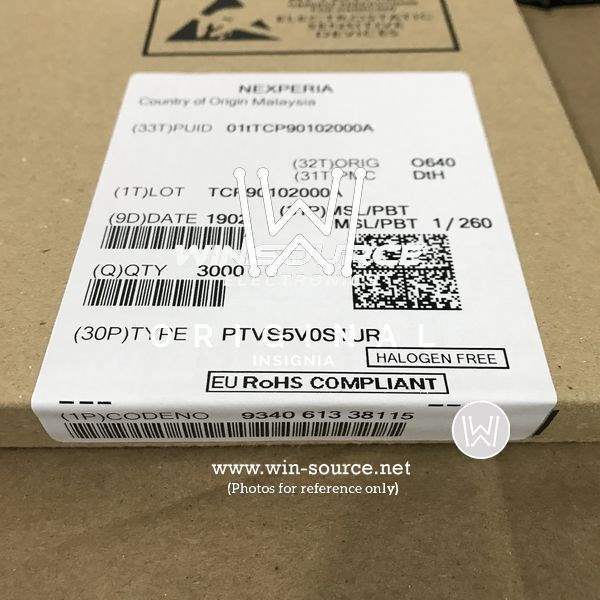

PTVS5V0S1UR,115 Nexperia USA Inc. PTVS5V0S1UR,115 label picture
Same model may have multiple batches, images only for reference.
PTVS5V0S1UR,115 Nexperia USA Inc. PTVS5V0S1UR,115 label picture
PTVS5V0S1UR,115 Nexperia USA Inc. PTVS5V0S1UR,115 label picture
Same model may have multiple batches, images only for reference.

PTVS5V0S1UR,115

Part No PTVS5V0S1UR,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.2VC SOD123W
Datasheet
PTVS5V0S1UR,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.4V
Max Clamping Voltage 9.2V
Peak Pulse Current(Ippm) 43.5A
Power Dissipation - Pd 400W
Applications Automotive
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package CFP3
Win Source Part Number 1090667-PTVS5V0S1UR,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PTVS5V0S1UR,115 CAD Model

Description

The PTVS5V0S1UR,115 is an active electronic component manufactured by Nexperia USA Inc.

  • Component Type: zener diode
  • Application: automotive
  • Mounting: surface mount technology
  • Channel: unidirectional
  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6.4V
  • Win Source Part Number: 1090667-PTVS5V0S1UR,115
