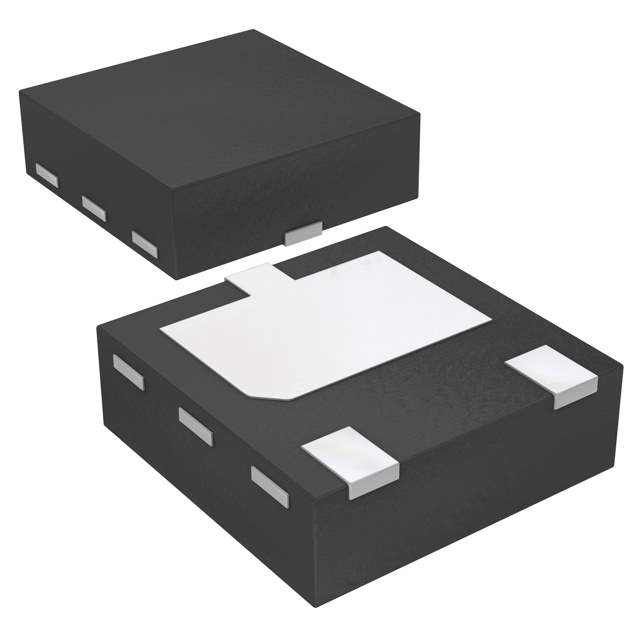

PTVS15VU1UPAZ Real Image
Same model may have multiple batches, images only for reference.

PTVS15VU1UPAZ

Part No PTVS15VU1UPAZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 15V 24.4V DFN2020-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 15V (Maximum)
Voltage - Breakdown (Minimum) 16.7V
Voltage - Clamping (Maximum) at Ipp 24.4V
Current - Peak Pulse (10/1000μs) 12.3A
Power - Peak Pulse 300W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 3-PowerUDFN
Supplier Device Package 3-HUSON (2x2)
Family Part Number PTVS15V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 715832-PTVS15VU1UPAZ
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTVS15VU1UPAZ CAD Model

Description

The Nexperia USA Inc. PTVS15VU1UPAZ is a Zener type diode that is designed for use in automotive applications.

  • Peak Pulse Current: 12.3A
  • Peak Pulse Power: 300W
  • Supplier Device Package: 3-HUSON (2x2)
  • Temperature Range: -55°C to 150°C
