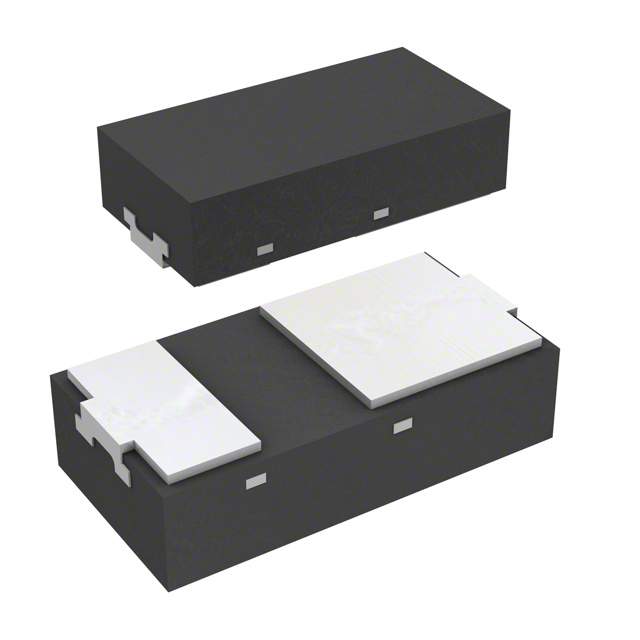

Same model may have multiple batches, images only for reference.

PMEG4010EPK,315

Name: PMEG4010EPK,315
Brand: Nexperia USA Inc.
SKU: 506096
Availability: InStock
Rating: 4.85 (80 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMEG4010EPK,315
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 40V 1A 2DFN
Datasheet	PMEG4010EPK,315 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	600mV @ 1A
Speed(Frequency)	Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr)	3ns
Current - Reverse Leakage @ Vr	4μA @ 1V
Capacitance @ Vr, F	60pF @ 1V, 1MHz
Mounting	SMD (SMT)
Case / Package	DFN1608D-2
Operating Temperature - Junction	150°C (Max)
Win Source Part Number	1089621-PMEG4010EPK,315
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian PMEG4010EPK,315 CAD Model

Alternative Products

Description

The Nexperia USA Inc. PMEG4010EPK,315 is a Schottky diode designed for use in electronic circuits.

Maximum Reverse Voltage (Vr): 40V
Average Rectified Current (Io): 1A
Voltage Forward (Vf) (Max) @ If: 600mV @ 1A
Reverse Recovery Time (trr): 3ns
Current Reverse Leakage @ Vr: 4μA @ 1V
Capacitance @ Vr, F: 60pF @ 1V, 1MHz
Recovery Speed: 200mA (Io)
Application: Discrete Semiconductor Products
