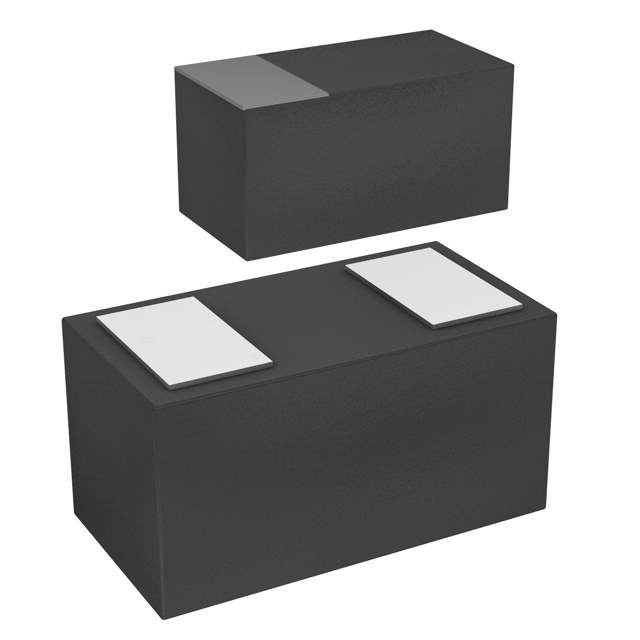

PMEG3005ESFYL

Name: PMEG3005ESFYL
Brand: Nexperia USA Inc.
SKU: 973711
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PMEG3005ESFYL
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 30V 0.5A SOD962 / Diode Schottky 30 V 500mA Surface Mount DSN0603-2
Datasheet	PMEG3005ESFYL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	720 mV @ 500 mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.42 ns
Current - Reverse Leakage @ Vr	9 µA @ 30 V
Capacitance @ Vr, F	21pF @ 1V, 1MHz
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	DSN0603-2
Operating Temperature - Junction	150°C (Max)
Base Product Number	PMEG3005
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Other Names	1727-2292-2,934068435315,568-12578-6,1727-2292-6,568-12578-2,568-12578-6-ND,1727-2292-1,2156-PMEG3005ESFYL-1727,568-12578-2-ND,568-12578-1,568-12578-1-ND
Standard Package	9,000
Win Source Part Number	973711-PMEG3005ESFYL
Ultra Librarian 3D Model	Ultra Librarian PMEG3005ESFYL CAD Model

Alternative Products

Description

The PMEG3005ESFYL is a fast recovery Schottky diode from Nexperia USA Inc. The manufacturer is Nexperia USA Inc. and the product is PMEG3005ESFYL.

Mounting Style: SMD (SMT)
Voltage DC Reverse (Vr) (Max): 30V
Current Average Rectified (Io): 500mA
Voltage Forward (Vf) (Max) @ If: 720mV @ 500mA
Reverse Recovery Time (trr): 1.42ns
Current Reverse Leakage @ Vr: 9µA @ 30V
Capacitance @ 1V, 1MHz: 21pF
Operating Temperature Range: 150°C (Max)
Package/Case: 0201 (0603 Metric)
Device Package: DSN0603-2
