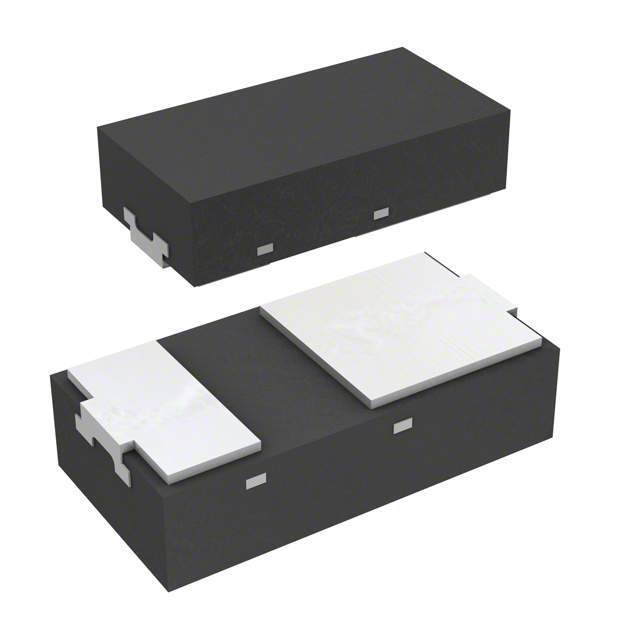

PMEG2020EPK,315

Name: PMEG2020EPK,315
Brand: Nexperia USA Inc.
SKU: 792426
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMEG2020EPK,315
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 20V 2A 2DFN / Rectifier Diode Schottky 20V 2A 5ns Automotive 2-Pin DFN-D T/R
Datasheet	PMEG2020EPK,315 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Nexperia USA Inc.
Packaging	Reel package
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	20V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Maximum) @ If	450mV @ 25A
Speed	Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	900μA @ 20V
Capacitance @ Vr, F	120pF @ 1V, 1MHz
Mounting	SMD
Package	2-XDFN
Manufacturer Package	DFN1608D-2
Operating Temperature - Junction	150°C (Maximum)
Win Source Part Number	792426-PMEG2020EPK,315
Popularity	Medium
Supply and Demand Status	Balance
Family Name	PMEG2020EPK
Introduction Date	April 25, 2012
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian PMEG2020EPK,315 CAD Model

Alternative Products

Description

The PMEG2020EPK,315 Schottky diode is manufactured by Nexperia USA Inc.

Application: Discrete Semiconductor Products
Average Rectified Current: 2A
Reverse Recovery Time: 5ns
Capacitance: 120pF @ 1V, 1MHz
Package: DFN1608D-2
Mounting: Surface Mount
Temperature Range: 150°C (Maximum)
Compliance: Halogen-free
