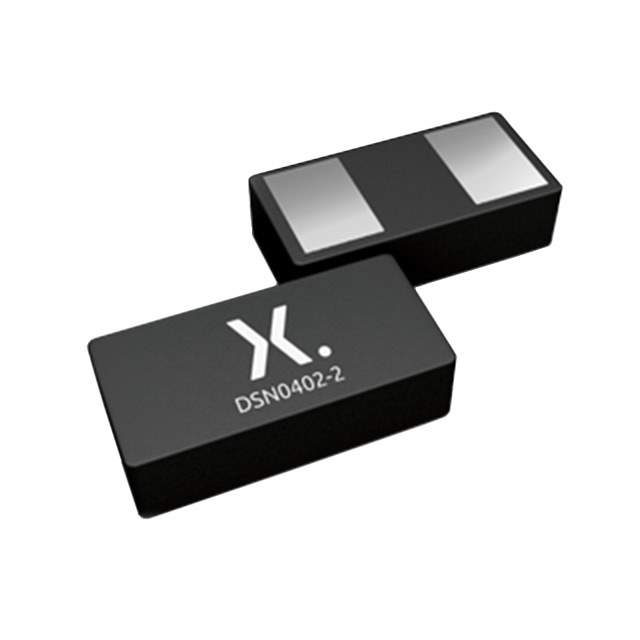

PESD5V5V1BCSNYL Real Image
Same model may have multiple batches, images only for reference.

PESD5V5V1BCSNYL

Part No PESD5V5V1BCSNYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 10.2VC DSN0402B / 10.2V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount DSN0402B
Datasheet
PESD5V5V1BCSNYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Clamping (Max) @ Ipp 10.2V
Current - Peak Pulse (10/1000µs) 8A (8/20µs)
Power Line Protection No
Applications Telecom
Capacitance @ Frequency 8.6pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 01005 (0402 Metric)
Supplier Device Package DSN0402B
Base Product Number PESD5V5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934660598315
Standard Package 10,000
Win Source Part Number 958674-PESD5V5V1BCSNYL
Ultra Librarian 3D Model Ultra Librarian PESD5V5V1BCSNYL CAD Model

Description

The PESD5V5V1BCSNYL is a TVS diode designed for telecom applications.

  • Package: tape & reel
  • Voltage Reverse Standoff: 5.5V (Max)
  • Capacitance: 8.6pF @ 1MHz
  • Current Peak Pulse: 8A (8/20μs)
  • Operating Temperature: -40°C to 125°C
