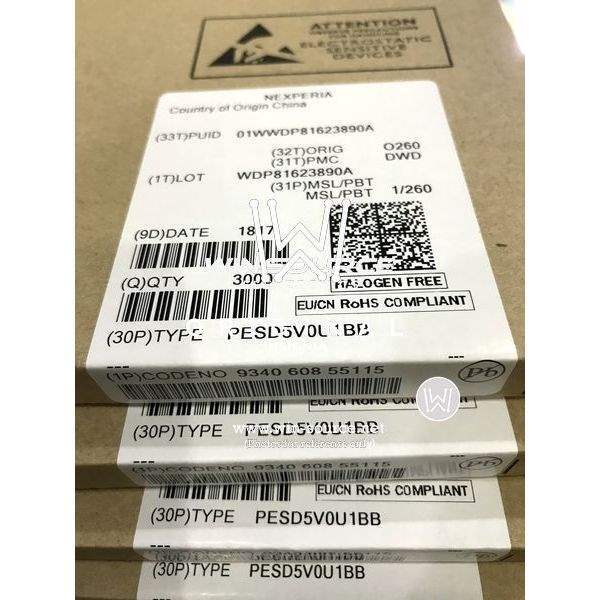

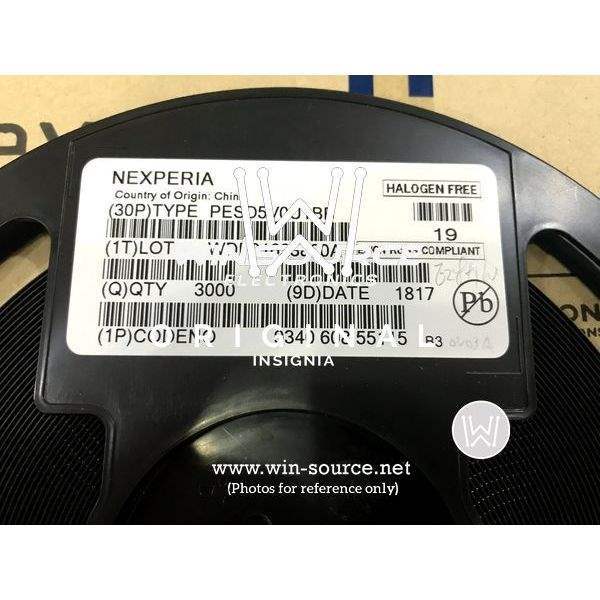

PESD5V0U1BB,115 Nexperia USA Inc. PESD5V0U1BB,115 label picture 2 PESD5V0U1BB,115 label picture
Same model may have multiple batches, images only for reference.
PESD5V0U1BB,115 Nexperia USA Inc. PESD5V0U1BB,115 label picture 2 PESD5V0U1BB,115 label picture
PESD5V0U1BB,115 Nexperia USA Inc. PESD5V0U1BB,115 label picture 2 PESD5V0U1BB,115 label picture
Same model may have multiple batches, images only for reference.

PESD5V0U1BB,115

Part No PESD5V0U1BB,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM SOD523
Datasheet
PESD5V0U1BB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.5V
Applications General Purpose
Capacitance @ Frequency 2.9pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1087604-PESD5V0U1BB,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD5V0U1BB,115 CAD Model

Description

The Nexperia PESD5V0U1BB,115 is a bidirectional zener diode used in circuit protection applications.

  • Capacitance @ Frequency: 2.9pF @ 1MHz
  • Mounting: Surface Mounted
  • Package/Case: SOD-523
  • Operating Temperature Range: -65°C to 150°C (TA)
  • Minimum Breakdown Voltage: 5.5V
  • STAND-OFF Voltage (Vwm): 5V (Max)
  • Supply and Demand Status: Sufficient
