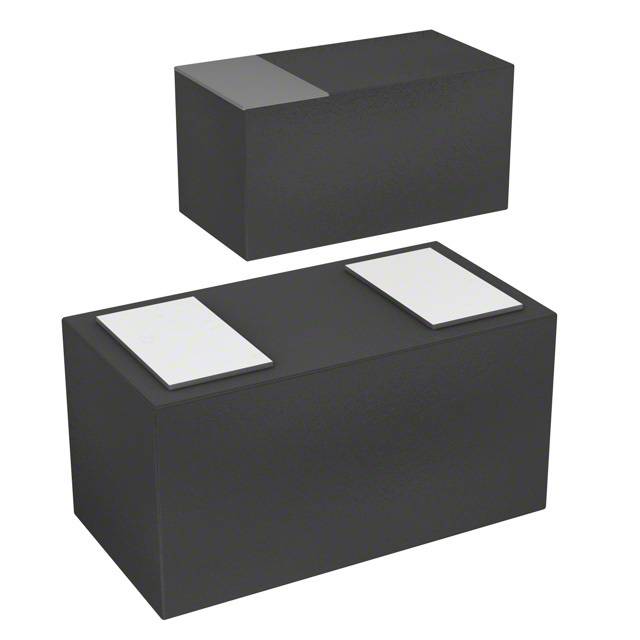

PESD5V0S1BSF,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD5V0S1BSF,315

Part No PESD5V0S1BSF,315
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15.5VC SOD962
Datasheet
PESD5V0S1BSF,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 15.5V
Peak Pulse Current(Ippm) 8A (8/20μs)
Power Dissipation - Pd 100W
Applications General Purpose
Capacitance @ Frequency 35pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package 2-DSN (0.60x0.30)
Win Source Part Number 1087593-PESD5V0S1BSF,315
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD5V0S1BSF,315 CAD Model

Description

The Nexperia USA Inc. PESD5V0S1BSF,315 is a bidirectional zener diode that finds application in general purpose circuit protection.

  • Mounting: SMD (SMT)
  • Package: 2-DSN (0.60x0.30)
  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 15.5V
  • Peak Pulse Current: 8A (8/20μs)
  • Power Dissipation: 100W
  • Operating Temperature: -55°C to 150°C (TA)
  • Supply and Demand: Sufficient
