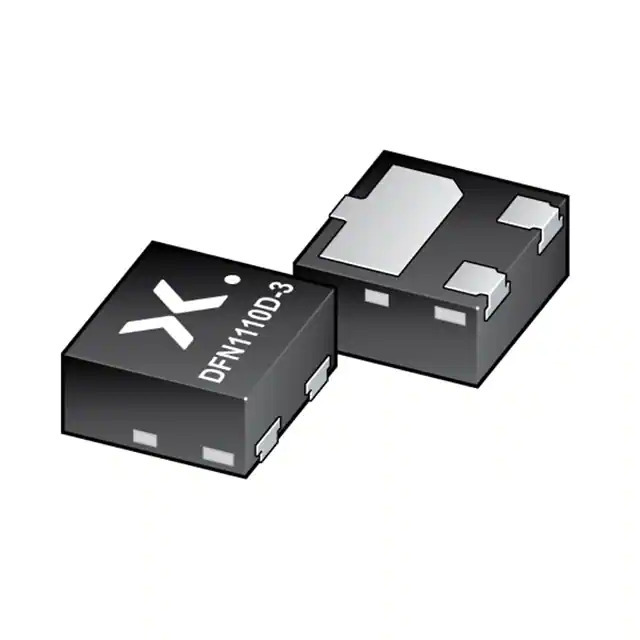

Same model may have multiple batches, images only for reference.
PESD2CANFD27V-QBZ Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD2CANFD27V-QBZ

Part No PESD2CANFD27V-QBZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 27VWM 44VC DFN1110D-3 / 44V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank DFN1110D-3
Datasheet
PESD2CANFD27V-QBZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 27V (Max)
Voltage - Breakdown (Min) 28V
Voltage - Clamping (Max) @ Ipp 44V
Current - Peak Pulse (10/1000µs) 2.5A (8/20µs)
Power - Peak Pulse -
Power Line Protection No
Applications Automotive, CAN
Capacitance @ Frequency 5.2pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3
Base Product Number PESD2CANFD27
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362069-PESD2CANFD27V-QBZ
Ultra Librarian 3D Model Ultra Librarian PESD2CANFD27V-QBZ CAD Model

Description

The 1362069-PESD2CANFD27V-QBZ is a TVS diode from Nexperia USA Inc.

  • Manufacturer: Nexperia USA Inc.
  • Category: Circuit Protection
  • Application: Automotive
  • Type: Bidirectional Zener
  • Reverse Standoff Voltage: 27V
  • Breakdown Voltage: 28V
  • Clamping Voltage: 44V @ 2.5A
  • Power Rating: Unspecified
  • Capacitance: 5.2pF @ 1MHz
  • RoHS: Compliant
  • REACH: Unaffected
  • Package: Tape and Reel
  • Package: 3-XDFN Exposed Pad
