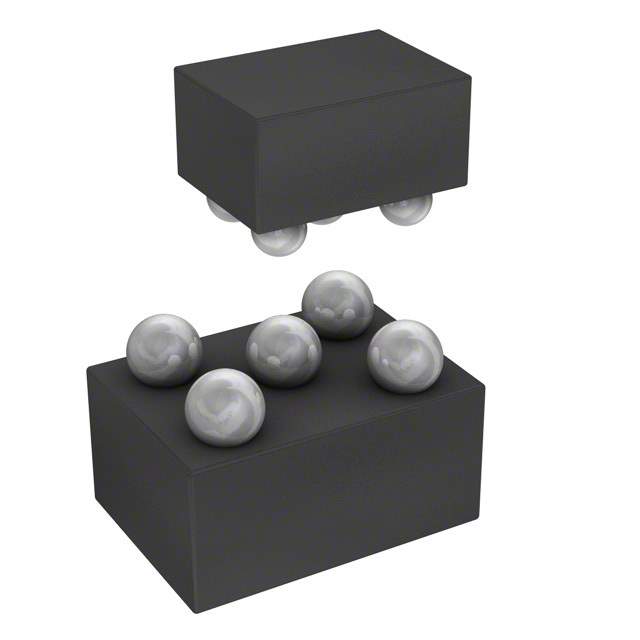

PESD1USB30Z Real Image
Same model may have multiple batches, images only for reference.

PESD1USB30Z

Part No PESD1USB30Z
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 5WLCSP
Datasheet
PESD1USB30Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 26 Weeks
Features - Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount 5-WLCSP
Manufacturer Nexperia USA Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 5-UFBGA, WLCSP
Case / Package 5-WLCSP
Family Name PESD1USB30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 4500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930270-PESD1USB30Z
Ultra Librarian 3D Model Ultra Librarian PESD1USB30Z CAD Model

Description

The Nexperia USA Inc. electronic component with the part number 930270-PESD1USB30Z is a high popularity product with a balanced supply and demand status.

  • Manufacturer: Nexperia USA Inc.
  • Features: clamp 8A (8/20μs) Ipp Tvs Diode Surface Mount 5-WLCSP
  • Series: PESD1USB30
  • Operating Temperature: -40°C to 85°C
  • Package: 5-UFBGA, WLCSP
  • Mounting: Surface Mount and Reel - TR
